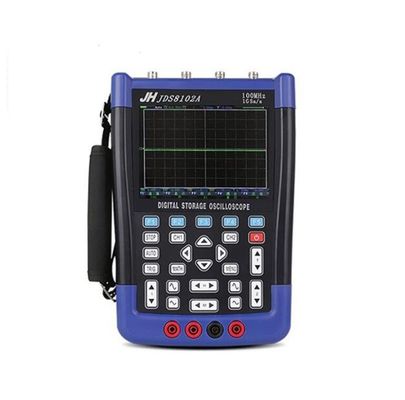

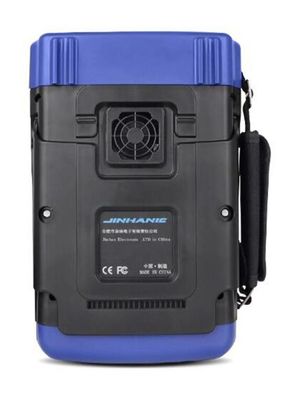

JDS8012A 100-240V 2-Channel 100MHz 1GSa/S TFT LCD Display Handheld Digital Storage Oscilloscope
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Maximum Sampling Rate: | 1G/S | Bandwidth: | 100MHz |
|---|---|---|---|
| Channels: | 2 | Vertical Resolution: | 8 Bits |
| Vertical Accuracy: | ±1% | Impedance: | 1MΩ 25pF |
Features :
New ultra-thin design, small volume, light weight, convenient carrying
Color TFT LCD display, 320*240 resolution, waveform display more clearly, stability
Dual analog channel
Support for USB storage device
Have the edge trigger function, can automatically detect the support
Support time and voltage cursors —Support A variety of waveforms mathematical sum
Support Chinese and English menu display
A variety of display styles: color display, monochrome display
Supports automatic power off and power-saving modes: time can be set
Backlight brightness can be adjusted
Waveforms can be saved by screenshot
Long standby: single cell battery can work continuously for 5 hours
With a digital multimeter functions
Specification :
| Number of channels | 2 |
| Bandwidth | 100M |
| Sampling rate | 1G/S (when CH1 is opened separately), 500M/S (when CH2 is opened) |
| Vertical resolution | 8bit |
| Vertical accuracy | 1% |
| Impedance | 1MΩ 25pF |
| Coupling | DCAC |
| Display mode | YT,XY,FFT |
| Vertical adjustable parameter (voltage gear) | 10mV-5V (X1 mode) 1-2.5-5 stepping |
| Level adjustable parameters (time base) | 10s-5ns 1-2-5 steps (10s - 200ms for scan mode) |
| Display input voltage | 40V(x1); 400V(x10); 4000V(x100) (220V input will not burn the meter when x1 is set) |
| Storage depth | 16k per channel |
| Trigger mode | Automatic, normal, single |
| Trigger type | Rising edge, falling edge |
| Automatic detection | 50Hz-100MHz |
| Measurement parameters | Maximum, minimum, peak-to-peak, frequency, duty cycle, etc. |
| Cursor measurement | Time, voltage |
1.2. Multimeter parameters
| Maximum input voltage | According to the pen parameters (theoretical DC 1000V AC 750V) |
| Maximum input current | According to the test pen parameters (theoretical value 200A) |
| Full-scale reading | 6000 count |
| DC voltage | 60.00mV,600.0mV,6.000V,60.00V,600.0V,,6000V |
| AC voltage | 60.00mV,600.0mV,6.000V,60.00V,600.0V,6000V |
| Direct current | 600.0uA/6000uA,60.00mA/600.0mA,6.000A/60.00A,600.0A/6000A |
| Alternating current | 600.0uA/6000uA,60.00mA/600.0mA,6.000A/60.00A,600.0A/6000A |
| Resistance | 600.0Ω,6.000kΩ,60.00kΩ,600.0kΩ,6.000MΩ,60.00MΩ,600.0MΩ,6000MΩ |
| Diode | 0V-2.0V |
| On-off detection | Less than 30 Ω voice |
| Capacitance | 40.00nF, 400.0nF, 4.000uF, 40.00uF, 400.0uF, 4000uF (30 seconds) |

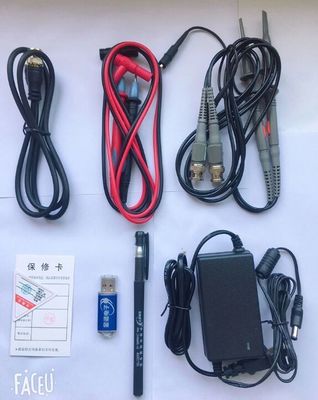

Packing List:
1x JDS8102A Oscilloscope
1 x User Manual
1x 1:1 Probe
1x 10:1 Probe
2x Multimeter
