JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope

Certification
Good quality Industrial Infrared Thermometer for sales
Good quality Industrial Infrared Thermometer for sales
I'm Online Chat Now

JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope

China JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier
JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier

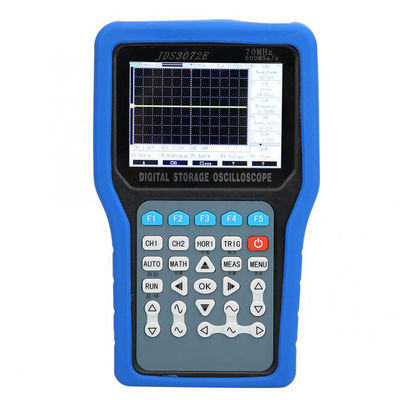

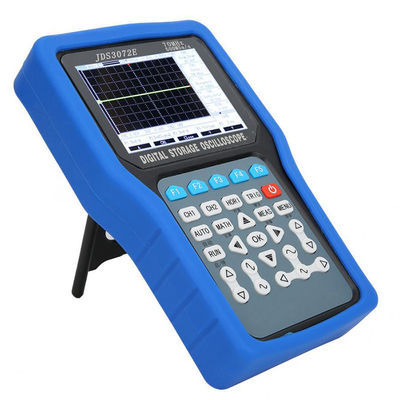

Large Image :  JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope

Product Details:

Place of Origin: China
Brand Name: JINHAN
Certification: CE ,Rohs
Model Number: GS-JDS3072E

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 227.2USD
Packaging Details: Color Box
Delivery Time: 3-5 days after confirm your payment for sample order or according to your order quantity
Payment Terms: Paypal , Western Union or T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Maximum Sampling Rate: 500MSa/S Bandwidth: 70MHz
Channels: 2 Vertical Resolution: 8 Bits
Vertical Accuracy: ±1% Impedance: 1MΩ 25pF

Features :


1. Made of high quality material, this digital oscilloscope is durable and can be used for a long time.
2. The 2 analog channel handheld digital oscilloscope is easy to operate and use, portable and easy to carry.
3. This instrument has the functions of oscilloscope and signal generator, which is powerful and practical.
4. With 4.5-inch, 16-bit true color TFT screen, it displays a clear and stable waveform, convenient to use.
5. High-performance sampling channel with sampling rate up to 500MS/S and maximum bandwidth up to 70MHz.


Specification :


Maximum Sampling Rate :500MSa/S

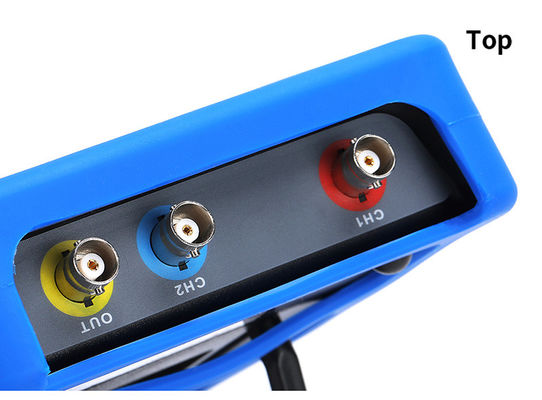

Analog Channel : 2

Digital Channel :no

Bandwidth :70MHz

Vertical Resolution : 8 digits

Vertical Gear : 10mV-5V (Probe 1X)

                        100mV-50V (Probe 10X)

                        1V-500V (Probe 100X)(1, 2.5, 5 Steps)

Input Resistance : 1MΩ 25pF

Input Coupling : ACDC

Display Mode :Y-T, X-Y

Input Voltage : 40V (Probe 1X)

                        400V (Probe 10X)

                        4000V (Probe 100X)

Time Base :10ns-50ms (1, 2.5, 5 Steps)

                    100ms-5s (Scan)

Storage Depth : 16k per Channel

Trigger Mode : Automatic, Normal, Single

Trigger Type : Rise and fall

Automatic Detection : Support (50Hz-60MHz)

Computation :CH1+CH2, CH1-CH2, CH2-CH1

                      -to-, Duty Cycle, Frequency, Period,

Measuring : Maximum, Minimum, Average, Root Mean Square

Cursor ; Time, Voltage



Signal Generator :



Frequency :Sine (1Hz-20MHz),

                  Square (1Hz-5MHz),

                  Triangular / Ramp (1Hz-1MHz)

Duty Cycle : 0%-100%

Amplitude :100mV-4V

Offset :±(0V-2V)



Serial Port Center :



Baud Rate :115200-1200

Data Bit : 8,9

Check Digit : No parity, odd parity, even parity

Stop Bit :1,0.5,2,1.5

Decimal :10, 16



Recorder :



 Time Base :100ms-5s

Record Length :Record a set of waveforms per second, up to ten minutes



Other



Screen : 4.5 Inch, 16-bit True Color, TFT 400x272

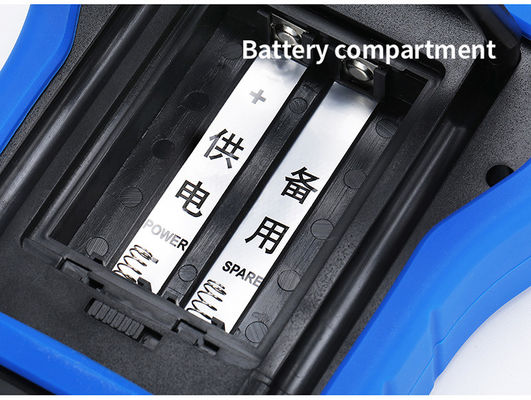

Battery : 2 x Battery (18650)( Not Included), can work continuously for 8-10 hours



JDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage OscilloscopeJDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage OscilloscopeJDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage OscilloscopeJDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage OscilloscopeJDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage OscilloscopeJDS3072E 100-240V 2-Channel 70MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope
