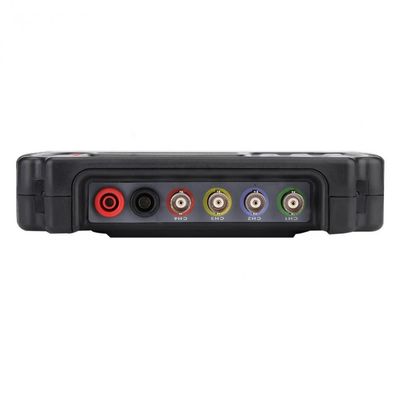

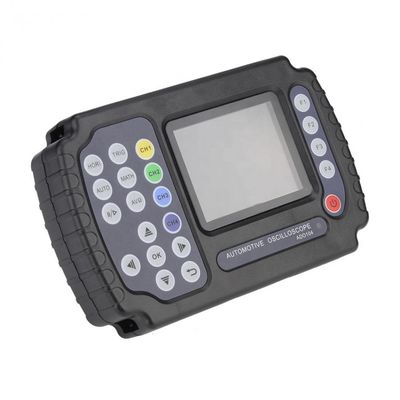

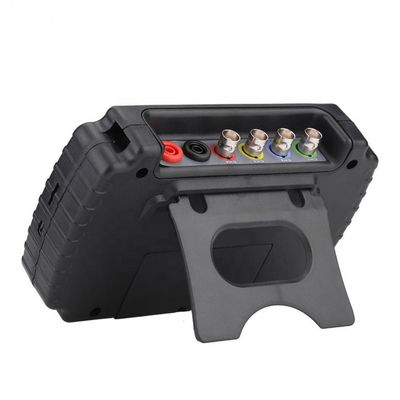

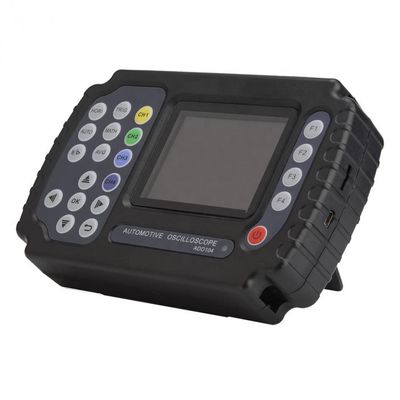

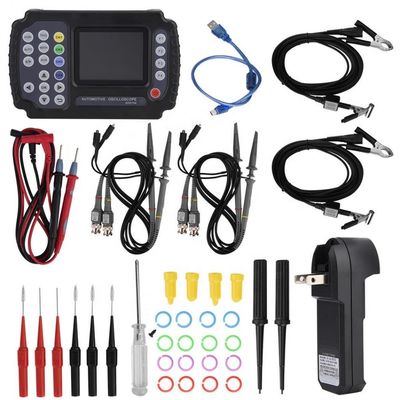

ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope

China ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope supplier
ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope supplier ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope supplier ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope supplier ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope supplier ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope supplier ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope supplier

Large Image :  ADO104 10MHz 100 MSa/s Handheld Digital Multimeter Oscilloscope 4-Channels Car Repair Automotive Oscilloscope

Product Details:

Place of Origin: China
Brand Name: JINHAN
Certification: CE ,Rohs
Model Number: GS-ADO104

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 277.2USD
Packaging Details: Color Box
Delivery Time: 3-5 days after confirm your payment for sample order or according to your order quantity
Payment Terms: Paypal , Western Union or T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Maximum Sampling Rate: 100MSa/S Bandwidth: 10MHz
Channels: 4 Vertical Resolution: 8 Bits
Vertical Accuracy: ±3% Impedance: 1MΩ 25pF

Features :


New ultra-thin design, small volume, light weight, convenient carrying

Color TFT LCD display, 320*240 resolution, waveform display more clearly, stability

Four analog channel, Support for USB storage device

Can be convenient to realize the car corresponding module features one-button operation any interface screenshot (press F2 screenshot)

Screenshot can preview Have the edge trigger function, under universal oscilloscope mode can automatically detect the support (20Hz - 10MHz)

Support time and voltage cursors

Support variety of waveforms mathematical sum dding a variety of waveform math functions Support Chinese and English menu display variety of display styles

Backlight brightness can be adjusted Long standby: single cell battery can work continuously for 5 hours

With a digital multimeter functions




Specification :

Voltage C100-240v
Plug(Optional) EU Plug, US plug
Channel 4
Bandwidth 10MHZ
Multimeter contain
import
Input coupling AC,DC
Input impedance 1MΩ 25pF
The maximum input voltage 40V (probe X1); 400V (probe ) can be measured 220V voltage; (probe 0) 2000V voltage can be measured
Probe attenuation 1 ,10
Set the probe attenuation factor 1 ,10 ,100
Signal Acquisition System
Sampling Method Real-time sampling, random sampling
Memory depth 4K
cquisition Mode Sample, Detect
Vertical System
Vertical Sensitivity

10mV-5V (Probe 1 ) 100mV-50V (probe 10 ) (1,2.5,5 step)



Vertical accuracy +/-3%
Vertical resolution 8bit
Bandwidth 10MHz
Horizontal Systems
Real-time sampling rate 100 /s
Horizontal scan range 25nS/div-5S/div
Trigger System
Mode uto, Normal and Single
Type Rising edge trigger, falling edge trigger
utomatic detection Support (20Hz-10MHz)
Measurement System
Cursor measurements

Support time and voltage cursors



Measurements Manual
Measure and frequency
Equipment
Screen 3.2-inch, 16-bit true color, TFT, 320 * 240
Battery(Not included) 3000 + mA battery (single cell about four hours of continuous work) BRC18650 3.7V
Size 18*11.5*3.5cm/7.1*4.5*1.4in
Weight pprox.1553g/54.8oz
