Housing Material: | Aluminum+ABS+Thermoplastic Rubber | Measuring Range: | 0 To 360° |
---|---|---|---|
Resolution: | 0.05° | Accuracy: | ±0.1° At 0° And 90°, ±0.2° At The Rest Angles |
DL135 | Technical data | |

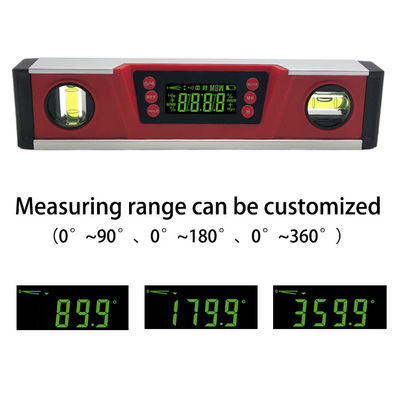

Horizontal measuring range | 0° -360° | |
Resolution | 0.05° | |
Accuracy | ±0.1° at 0° and 90°; ±0.2° at the rest | |
Net weight | 373g (Not containing battery) | |

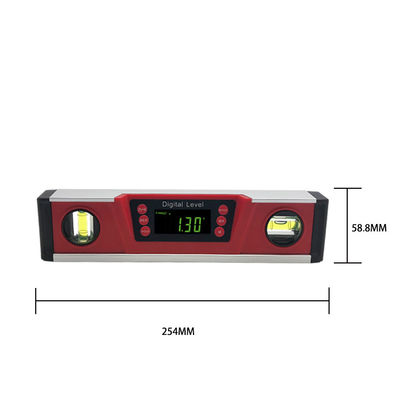

Dimensions | 25.4*2.8*5.9cm | |
Working temperature | 0℃ ~ 40℃ | |
Storage temperature | -10℃ ~ 50℃ | |
BODY MATERIAL | Aluminum+ABS+Thermoplastic Rubber. | |
Measuring angle mode | degrees °, percent %, mm/m, IN/FT slope or pitch | |
Power | DC 3V(2*LR03 AAA batteries) | |

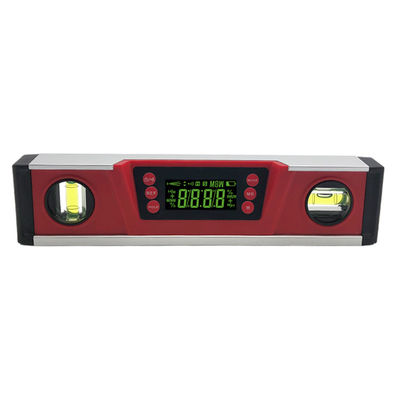

Feature | 10 inch 25.4cm Torpedo digital level. | |
Waterproof & dustproof industrial standard. | ||
Advanced "Traffic Light" LED technology allowing for the brightest display. | ||
Low battery indicate. | ||
Auto power off function. | ||

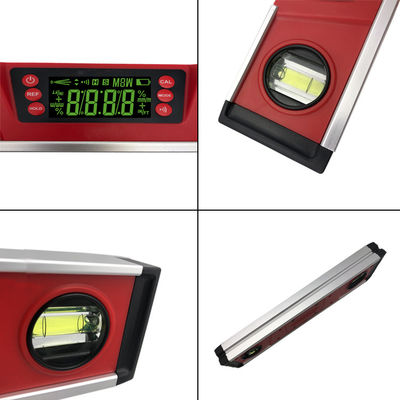

Strong magnets in the solid V-groove aluminium base allowing high performance and reliability in the toughest working environment. | ||
Inverted reading position for overhead work. | ||
With scales at the front bottom alumimum side. |

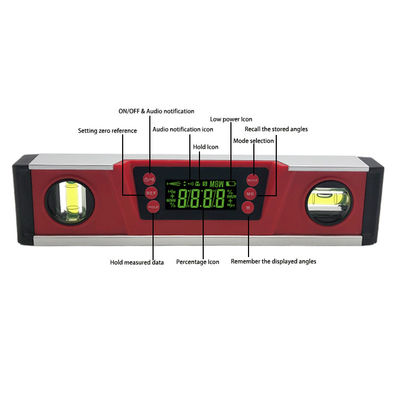

Operation Instruction :
1. Insert batteries;
2. Put the tool measuring surface onto the object, press ON/OFF button to power on;

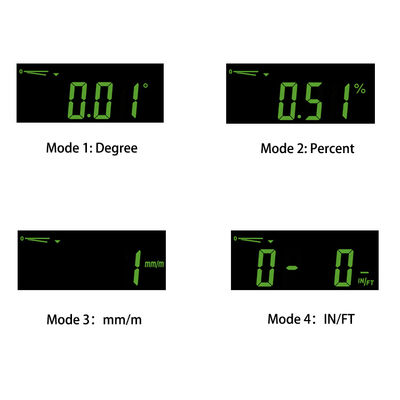

3. Press MODE button to switch for the desired modes(degrees,percent,IN/FT,mm/m);
4. Press HOLD button to hold the measured values;
5. Press REF button to set Zero;
6. Press CAL&ON/OFF buttons to calibrate;
7. Press the voice icon button to on/off the beeps;
8. The measurement is completed, power off, remove the batteries, and keep the tool well.
