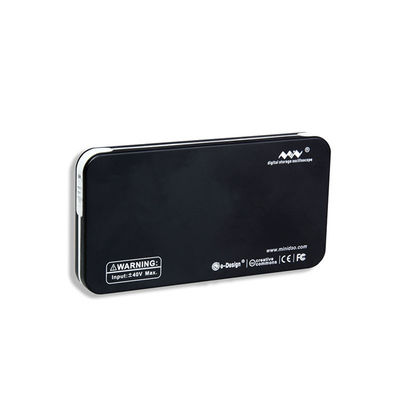

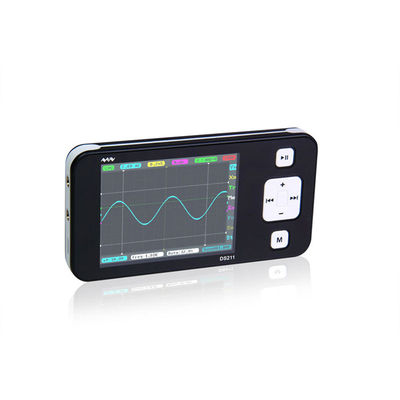

DS211 Mini 2.8" 2 Channel 1MSa/s 200KHz Bandwidth Digital Oscilloscope For Electronic Devices
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Max Sample Rate: | 1MSa/s | Analog Bandwidth: | 200KHz |
|---|---|---|---|
| Channels: | 1 Analog Channels | Max Sample Memory Depth: | 8K |
| Coupling: | AC/DC | Analog Input Impedance: | >500kΩ |
Features :
It is a pocket size digital storage oscilloscope is small enough to take it anywhere,and fulfills basic electronic engineering requirements;
Inbuilt 8MB U-disk storage for waveform data and images;
Can be powered by internal batteries, so in the field measurement, the ground wire is completely suspended, can be exactly like a multi-meter, point where to measure, without considering the problem of grounding isolation;
The oscilloscope code application layer is open source;
Users can develop firmware according to different needs;
Can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering.
Main Parameters :

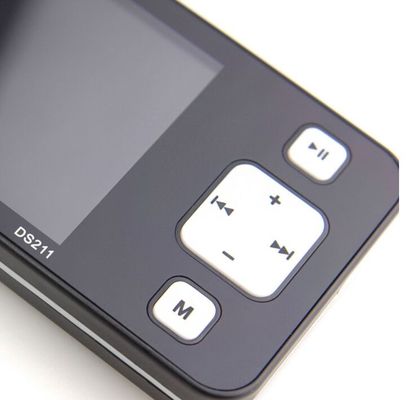

| Operation | Button | MCU | STM32F103VC |
| Channels | 1 Analog Channel | ADC | MCU Internal ADC |
| Horizontal Sensitivity | 1uS/Div~2S/Div. (1-2-5sequence step) | Analog Bandwidth | 200KHz |
| Vertical Sensitivity | 20mv/Div~10V/Div. (1-2-5sequence step) | Max Sample Rate | 1MSa/s |
| Trigger Mode | Ascend / Descend Edge Trigger Mode | Max Sample Memory Depth | 8K |
| Math Waveforms | -Inp / Data / -Data / Inp+D / D-Inp / Inp- | Analog Input Impedance | >500kΩ |
| Inbuilt Signal Generator | Sine / Square / Triangle / Sawtooth Wave | Coupling | DC / AC |
| Synchronous Mode | Auto, Normal, Single, Scan | AUTO_FIT | AUTO_FIT |
| Auto Measurement |
Signal Sequence / Cycle / Duty Ratio, Peak Voltage / Virtual Value / Max Value / Min Value / Average |
APP Installed | 1 |
| Open Source | Application Layer Open-Source |
Product Specification:

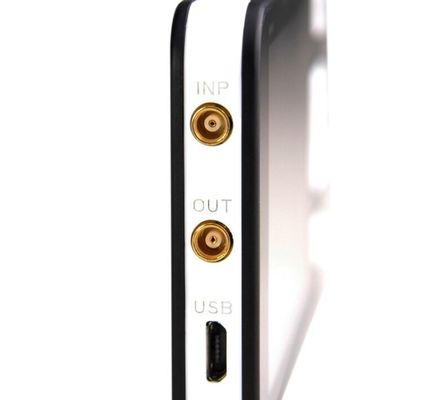

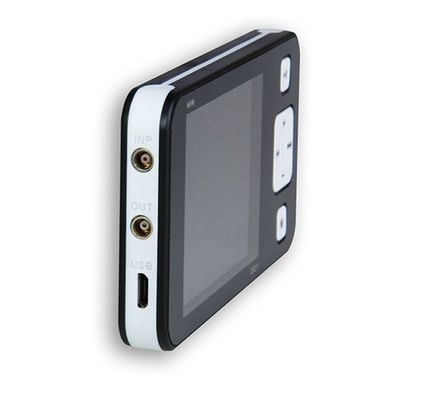

| Data Transfer Interface | Micro USB Port | Screen Size | 2.8'' |
| Storage | 8MB USB Flash Disk Memory | Screen Resolution | 320 x 240 |
| Net Weight | 66g (with Battery) | Battery | 500mAh |

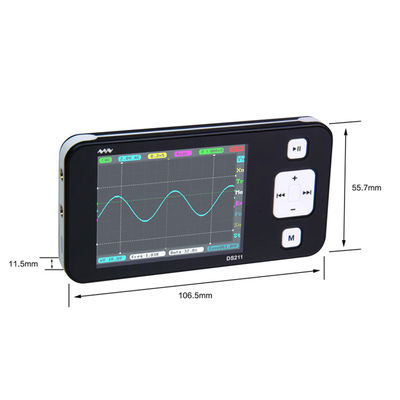

| Certification | Compliant with EU Certification CE FCC | Dimension | 106.5mm x 55.7mm x 11.5mm |

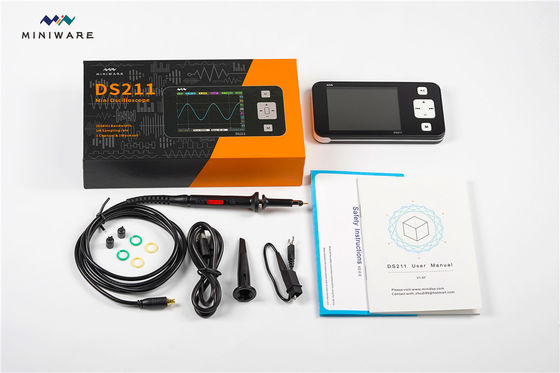

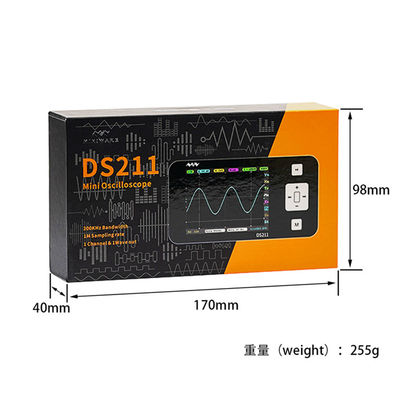

Packing List :
DS211 Mini Oscilloscope x 1
Probe x 1
USB Cable x 1
User Manual x 1
