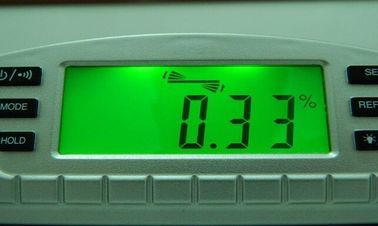

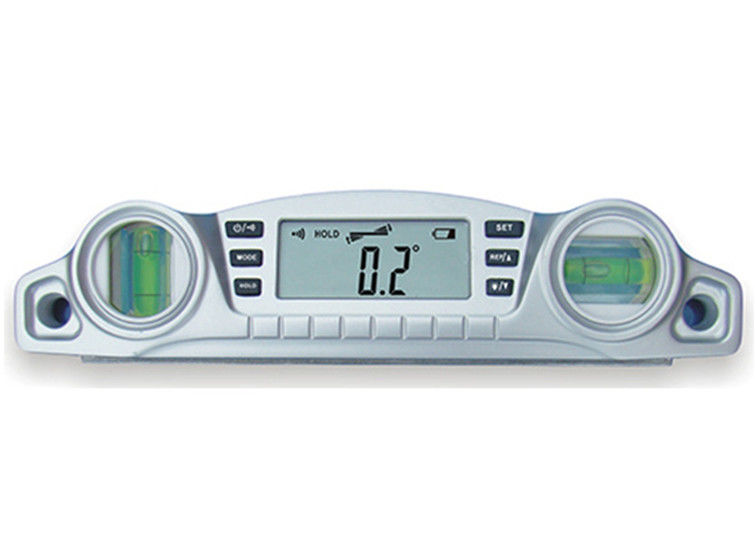

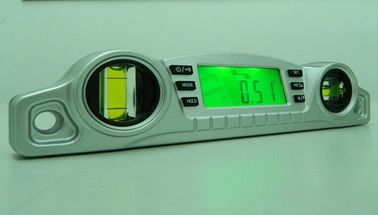

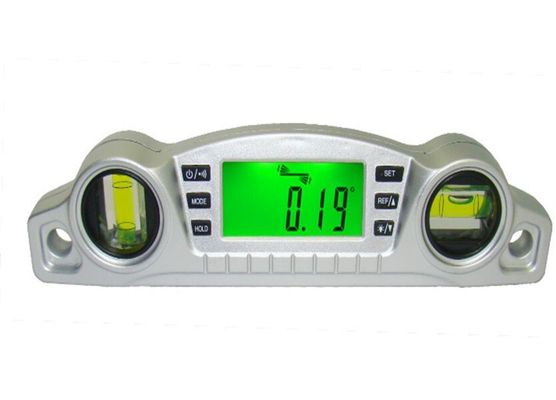

DL120 LCD Display High Precision Digital Bubble Level

China DL120 LCD Display High Precision Digital Bubble Level supplier
DL120 LCD Display High Precision Digital Bubble Level supplier DL120 LCD Display High Precision Digital Bubble Level supplier DL120 LCD Display High Precision Digital Bubble Level supplier DL120 LCD Display High Precision Digital Bubble Level supplier

Large Image :  DL120 LCD Display High Precision Digital Bubble Level

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-DL120

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: in color box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description

Features:


1.Measuring range of digital display: 4x90°
2.Resolution of digital display: +/-0.01°at 0°and 90°
                                 +/-0.05°at 1°-89°
3.Precision of digital display:  +/-0.1°at 0°and 90°
                                 +/-0.2°at 1°-89°
4.Setting degrees which you want
5.Unit of measurement (°degrees /%/IN/FT)
6.Backlight
7.Buzz selectable
8.Hold function
9.0°calibration
10.Battery type: 2x1.5V AAA batteries



1. 30cm 12 inch level with Class 2 Laser
2. Resolution: 0.01° at 0° and 90°, 0.05° at the rest°
3. Horizontal level measuring range: 0 to 360°
4. Accuracy: ±0.1° at 0° and 90°: ±0.2° at the rest
5. Measures angle in degrees, IN/FT, % slope or pitch
6. Audible tone at level, plump and setting angle
7. Automatic shut-off after 5 minutes
8. Backlight LCD
9. Self checking accuracy
10. Self calibration
11. Hold-function to freeze the measurement

Specification:

Resolution of digital display: +/-0.01°at 0°and 90°
                               +/-0.05°at 1°-89°
Precision of digital display: +/-0.1°at 0°and 90°
                              +/-0.2°at 1°-89°
Working temperature:  -0°C-40°C
Storage temperature: -10°C-50°C
Power supply: 2x1.5V AAA batteries
Dimensions: 66X28X295mm
