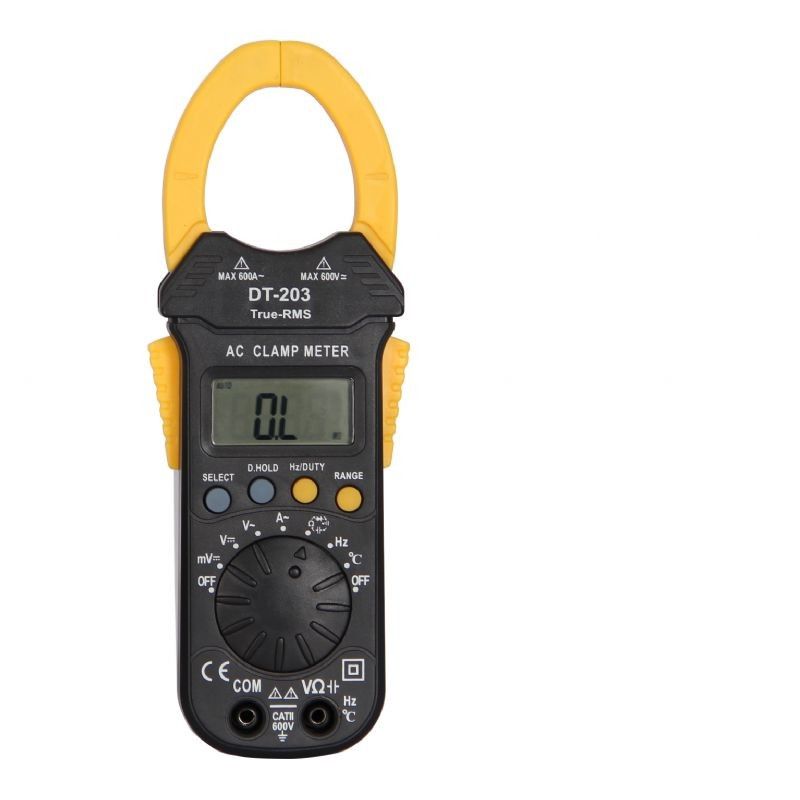

DT203T Auto Range Full Protection Design Non-Contact Measurement True RMS Digital Multimeter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Features :
Auto range design.
Portable clamp meter with full protection design. Easy to use.
True RMS Clamp meter, can test any waveform voltage.
Data hold function for easy reading after measurement.
Easy to read in dark condition with blue backlight.
With temperature, capacitance and frequency test function.
Non-contact measurement ensures the measurement safety.
Portable clamp meter with full protection design. Easy to use.
True RMS Clamp meter, can test any waveform voltage.
Data hold function for easy reading after measurement.
Easy to read in dark condition with blue backlight.
With temperature, capacitance and frequency test function.
Non-contact measurement ensures the measurement safety.
Specification :
DCV: 400m-4-40-400-600V ±0.8%
ACV: 400m-4-40-400-600V ±1.0%
ACA: 400-600A ±2.0%
Resistance:400-4K-40K-400K-4M-40MΩ ±1.0%
Capacitance:400n-40u-100uF ±4.0%
Frequency:5-50-500-5K-50K-500K-5MHz ±3.0%
Temperature: -20ºC~1000ºC ±2.0%
Duty Cycle:0.1%-99.9% ±0.1%
ACV: 400m-4-40-400-600V ±1.0%
ACA: 400-600A ±2.0%
Resistance:400-4K-40K-400K-4M-40MΩ ±1.0%
Capacitance:400n-40u-100uF ±4.0%
Frequency:5-50-500-5K-50K-500K-5MHz ±3.0%
Temperature: -20ºC~1000ºC ±2.0%
Duty Cycle:0.1%-99.9% ±0.1%
LCD size: 36x19mm
Max display: 3999
Auto range: yes
Low battery indication: yes
Overload protection: yes
Diode Test: yes
Transistor Test: yes
Data Hold: yes
Backlight: yes
Jaw Caliber:∮40mm
Power supply: two 1.5V AAA battery
Product size: 190x68x28mm
Product weight: about 138g (without battery)
Standard Accessories: meter (without battery), carrying bag, test lead, thermocouple, manual, battery
Max display: 3999
Auto range: yes
Low battery indication: yes
Overload protection: yes
Diode Test: yes
Transistor Test: yes
Data Hold: yes
Backlight: yes
Jaw Caliber:∮40mm
Power supply: two 1.5V AAA battery
Product size: 190x68x28mm
Product weight: about 138g (without battery)
Standard Accessories: meter (without battery), carrying bag, test lead, thermocouple, manual, battery
