SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer

China SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier
SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer supplier

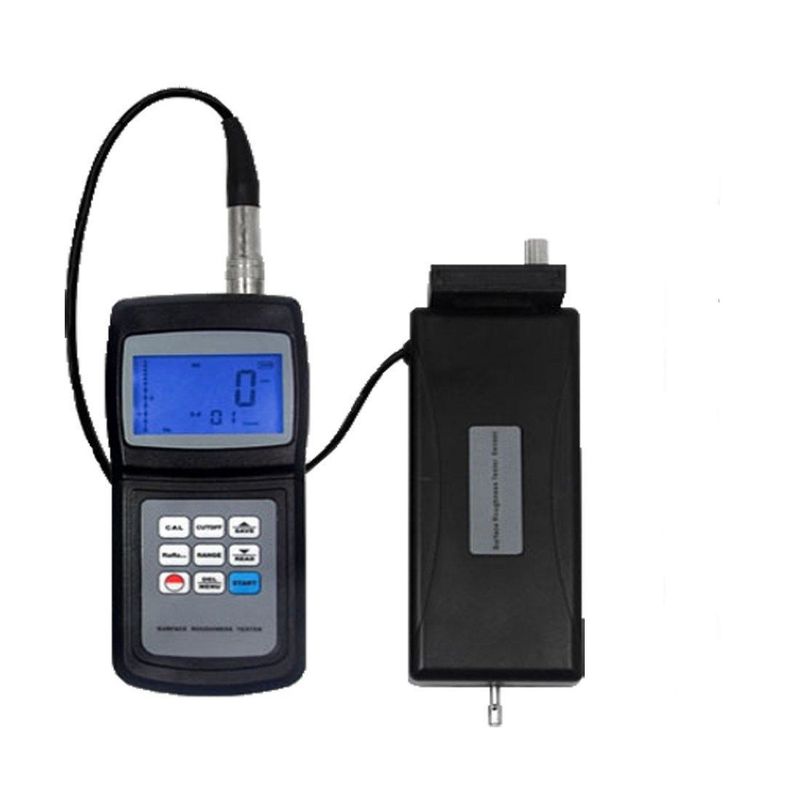

Large Image :  SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-SRT6200S

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: in color box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,west union,T/T, MoneyGram
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Test Principle: Inductance Type Accuracy: ≤ ± 10%
Radius Of Probe Pin: 10 Um Material Of Probe Pin: Diamond



Features :



* Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Small in size, light in weight and easy to use.
*Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.




Specification :




Display 4 digits, 10 mm LCD, with blue backlight
Parameters Ra,Rz,Rq,Rt
Measuring Range

 Ra , Rq : 0.05~10.00 um / 1.000~400.0 uinch
Rz , Rt : 0.020~100.0 um / 0.780~4000 uinch
Accuracy ≤ ± 10%
Fluctuation of display value Not more than 6%
Sensor Test Principle Inductance type
Radius of Probe Pin 10 um
Material of Probe Pin Diamond
Measurement Force of Probe 16 mN(1.6 gf)
Probe Angle 90°
Vertical Radius of Guiding Head 48 mm
Maximum driving stroke 17.5 mm / 0.7 inch
Cutoff length (l) 0.25 mm / 0.8 mm / 2.5 mm optional
Driving speed Sampling When Length = 0.25 mm, Vt = 0.135 mm/s
When Length = 0.8 mm, Vt = 0.5 mm/s
When Length = 2.5 mm, Vt = 1 mm/s
Returning Vt = 1 mm/s
Resolution 0.001 um, if reading ＜ 10um
0.01 um, if 10um ≤ reading ≤ 100um
0.1 um, if reading ≥ 100um
Evaluation length 1~5 L optional
Auto Power Off
Operating conditions Temperature: 0~50 ℃ Humidity: ＜ 80 %RH
Power Supply 4 x 1.5v AAA size (UM-4) battery
Dimensions Main Unit 149 x 67 x 29 mm
Measuring Base 185 x 56 x 47 mm
Weight 485 g





Standed Accessories:



1. Main Unit

2. Small Screwdriver

3. Measuing Base

4. Adjustable Stand

5. Standard Sample Plate

6. Standard Sensor

7. Carrying Case

8. Instruction Manual



Optional Accessories:



1. Groove Stylus SRP-110

2. Curvature Probe SRP-120

3. Extension Rod SER-150

4. Measurement Stand SRS-1

5. USB, RS-232C data cable with software
6. Bluetooth data out put with software





Application :



Surface roughness testers are widely used in production site to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions and clearly display all measurement parameters.



SRT-6200S LCD Display Surface Roughness Tester Separate Surftest Meter Diamond Probe Profilometer
