HM-6580 Portable LCD Display 170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor

Certification
Good quality Digital Thermometer for sales
Good quality Digital Thermometer for sales
I'm Online Chat Now

HM-6580 Portable LCD Display 170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor

China HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier
HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor supplier

Large Image :  HM-6580 Portable LCD Display 170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor

Product Details:

Place of Origin: China
Certification: CE , Rohs
Model Number: GSHM-6580

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs

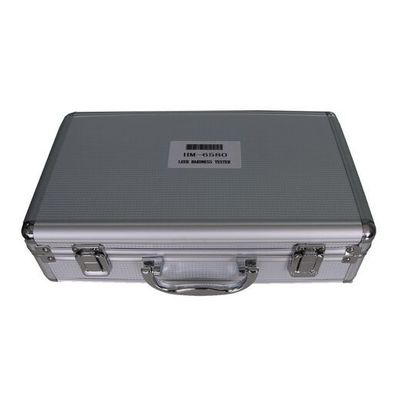

Packaging Details: in Aluminum Case
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Display: LCD Measuring Range: 170-960 HLD
Repeatability: ±6HLD(HLD=800) Accuracy: ±8HLD(HLD=800)
Measuring Direction: 360°

Features :


* Palm size for narrow space.
* Test at any angle, even upside down.
* Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
* Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
* User recalibration function allowed.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Manual or automatic shut down.
* Low battery indication.



Specification :



Case Material Aluminum Alloy
Display LCD
Materials 9 different common materials ( Steel & Cast Steel, Metallurgy tool steel, Forged Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper )
Measuring range (170-960)HLD,(20-68)HRC,(19-651)HB,(80-967)HV,(30-100)HS, (13-100)HRB
Accuracy ±8HLD(HLD=800)
Repeatability ±6HLD(HLD=800)
Conversion HL-HRC-HRB-HB-HV-HSD
Measuring Direction 360°
Impact device D Will handle, Weight: 75g
Radius of Measured Workpiece Rmin=50mm ( For non-conventional Supporting ring Rmin=10mm )
Min. Weight of Workpiece Stable support 2kg ( 0.1kg Coupling )
Min. Thickness of Workpiece 3mm
Min. Thickness of Hardened Layer 0.8mm
Working Conditions Temperature: 0 ~ 40 ℃ Humidity: ≤ 90 %
Power supply 2 x 1.5 V AA size (UM-3) battery
Dimension 130 x 76 x 31 mm
Weight 340 g (Not Including Batteries)


Standard Accessories :


1. Main Unit

2. Standard Test Block

3. Measurement Sensor

4. Carrying Case

5. Operation Manual

6. Small Support Ring

7. Cleaning brush



Optional Accessories:



1. Impact Body

2. Support Rings set



Application :



Leed hardness tester is applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuring areas for large-scale work piece.



HM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With SensorHM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With SensorHM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With SensorHM-6580 Portable LCD Display  170-960 HLD Leed Hardness Tester Meter Metals Durometer With Sensor
