MH-934-1+ Portable LCD Display 0~100Hba Aliminium Hardness Barcol Impressor With Maximum Hold Function

China MH-934-1+ Portable LCD Display 0~100Hba Aliminium Hardness Barcol Impressor  With Maximum Hold Function supplier
MH-934-1+ Portable LCD Display 0~100Hba Aliminium Hardness Barcol Impressor  With Maximum Hold Function supplier MH-934-1+ Portable LCD Display 0~100Hba Aliminium Hardness Barcol Impressor  With Maximum Hold Function supplier MH-934-1+ Portable LCD Display 0~100Hba Aliminium Hardness Barcol Impressor  With Maximum Hold Function supplier

Large Image :  MH-934-1+ Portable LCD Display 0~100Hba Aliminium Hardness Barcol Impressor With Maximum Hold Function

Product Details:

Place of Origin: China
Certification: CE , Rohs
Model Number: GS-MH934-1+

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: in Aluminum Case
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Measuring Range: 0~100Hba, Amount To 25~135HBW Resolution: 0.1HBa
Maximum Hold: Yes

Features :


* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.

* It is with good stability, convenient calibration, and high accuracy of detection.

* Small in size, portable. Single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.

* Wide test range, can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.

* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.

* With the maximum hold function, recording the maximum hardness value during measurements.

* Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).

* Provide Bluetooth data output choice.



Specification :



Measuring Range 0~100Hba, Amount to 25~135HBW
Resolution 0.1HBa
Indication Error 81~88HBa ±1HBa
42~48HBa ±2Hba
Repeatability Error 81~88HBa ±1.5HBa
42~48HBa ±2.5HBa
Brinell Hardness
Vickers Hardness
Webster Hardness
Rockwell hardness
Maximum Hold
Average Calculation
Operating Condition Temperature: 0~50°C
Humidity: <80%RH

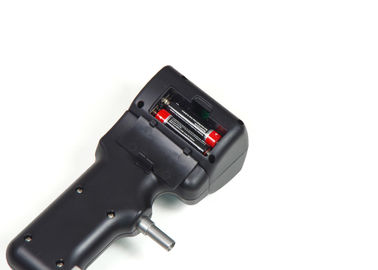

Power Supply 2 x 1.5 V AAA (UM-4) Battery
Weight 390g (Not Including Batteries)


Standard Accessories :


1. Main Unit

2. 2 Pins

3. 2 Standard Blocks

4. Pin Length Calibration Block

5. Screw Driver

6. Spanner

7. Carrying Case

8. Operation Manual



Optional Accessories:



1. Bluetooth data out put with software



Application :



Barcol impressor is mainly used in aluminum processing industry, testing pure aluminum, soft aluminum, thick aluminum alloy, aluminum strip, aluminum rod, aluminum castings, aluminum forgings and aluminum alloy products. Also, it can be used for glass steel industry.
