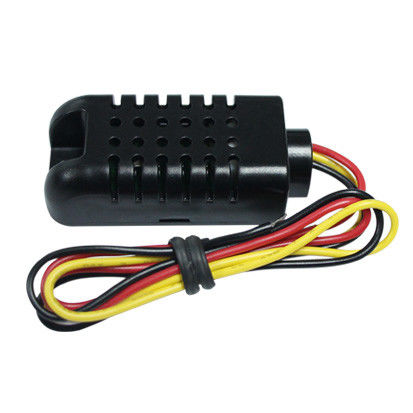

AM2311A Temperature and Humidity Sensor with communication Line

China AM2311A Temperature and Humidity Sensor with communication Line supplier
AM2311A Temperature and Humidity Sensor with communication Line supplier AM2311A Temperature and Humidity Sensor with communication Line supplier AM2311A Temperature and Humidity Sensor with communication Line supplier

Large Image :  AM2311A Temperature and Humidity Sensor with communication Line

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-AM2311A

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Packaging Details: Anti-Static Bag
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Usage: Industrial Typical Accuracy (% RH): ± 3
Operating Range (% RH): 0 To 99.9 Humi Response Time(s): 5
Typical Accuracy (°C): ±0.5 Operating Range (°C): -40~80
Temp Response Time(s): 5 Interface: 1-Wire
Supply Voltage(V): 3.3~5.5 Size:L*W*H (mm): 44.4*20*12.9

Overview :

AM2311A Digital Temperature and Humidity Module is a temperature and humidity composite sensor with its calibrated digital signal output.It applies special digital module acquisition technology and temperature and humidity sensing technology,to ensure that the product has high reliability and excellent long-term stability.The product has the advantages of excellent quality, ultra-fast response, strong anti-interference ability and high cost performance.Each sensor is calibrated in an extremely accurate humidity calibration laboratory.Calibration coefficients are stored in the form of program in the single chip computer. These calibration coefficients are called in the process of processing the detection signal inside the sensor. Standard single bus interface makes system integration easy and fast.Standard single bus interface makes system integration easy and fast. Ultra-small size, very low power consumption,Signal transmission distance can reach more than 20 meters, making it the best choice for all kinds of applications and even the most demanding applications. Products are cited as 3Wire (single bus interface) connection is convenient. Special encapsulation forms can be provided according to user's needs requirements.





Features :



• Full calibration
• Digital output, unibus interface
• Excellent long-term stability
• Quick response and strong anti-jamming capability



Specification :





Typical accuracy (% RH) ± 3
Operating range (% RH) 0 to 99.9
Humi response time(s) 5
Typical accuracy (°C) ± 0.5
Operating range (°C) -40~80
Temp response time(s) 5
Interface 1-Wire
Supply voltage(V) 3.3~5.5
Size:L*W*H (mm) 44.4*20*12.9





Application Range :

HVAC system, dehumidifier,test and inspection equipment,consumer goods,automobiles,automatic control, data recorder,weather station,household appliances,humidity regulation,medical and other relatedtemperature and humidity detection and control.
