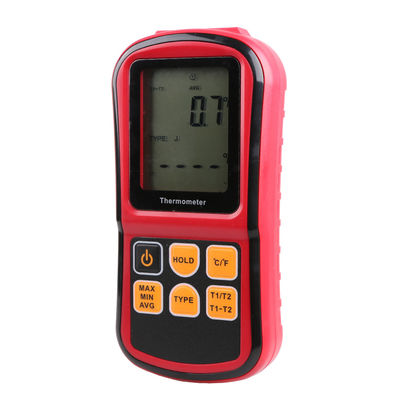

GM1312 Digital Thermometer Dual-channel LCD Display Temperature Meter Tester for K/J/T/E/R/S/N Thermocouple

Large Image : GM1312 Digital Thermometer Dual-channel LCD Display Temperature Meter Tester for K/J/T/E/R/S/N Thermocouple

Product Details:

Place of Origin:	China
Certification:	CE ,Rohs
Model Number:	GS-GM1312

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	12.6USD
Packaging Details:	Gift Box+PP box
Delivery Time:	3-5 days for sample order or according to your order quantity
Payment Terms:	Paypal ,West Union,T/T
Supply Ability:	10000 pcs/month

Contact Now

Detailed Product Description

Usage:	Industrial	Theory:	Thermocouple Thermometer
J-type:	-210 To 1,200°C (-346 To 2,192°F)	K-type:	-200 To 1,372°C (-328 To 2,501°F)
T-type:	-250 To 400°C (-418 To 752°F)	E-type:	-150 To 1,000°C (-238 To 1,832°F)
N-type:	-200 To 1,300°C(-328 To 2,372°F)	R-and S-type:	0 To 1,767°C (32 To 3,212°F)

Features :

The electrical compensation function provides the compensation to the thermocouple error, to improve the overall precision
Measures J, K, T, E, N and R types of thermocouple
Unit: Celsius and Fahrenheit
Double display shows T1/T2 and combination of T1/T2

Specification :

Measurement range
J-type:	-210 to 1,200°C (-346 to 2,192°F)
K-type:	-200 to 1,372°C (-328 to 2,501°F)
T-type:	-250 to 400°C (-418 to 752°F)
E-type:	-150 to 1,000°C (-238 to 1,832°F)
N-type:	-200 to 1,300°C(-328 to 2,372°F)
R-and S-type:	0 to 1,767°C (32 to 3,212°F)
Resolution:	0.1°C/°F <1,000°, 1.0°C/°F ≥1,000°
Accuracy:	±0.1% + 0.6°C
Operating temperatures:	0 -40°C
Storage temperatures:	-10-50°C
Storage humidity range:	20-90% RH
Thermocouple T1,T2, input and display:	√
Data hold:	√
°C/°F switch:	√
Maximum/minimum/average:	√
Electrical compensation :	√
Display backlight:	√
Power supply:	3*1.5V AAA batteries
Dimensions:	145.57229mm
Warranty:	12 months

User Manual of GM1312 Thermocouple Thermometer.pdf
