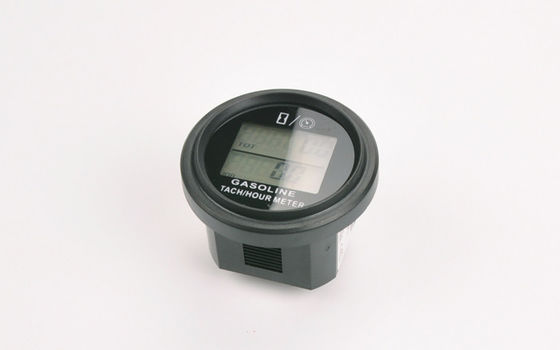

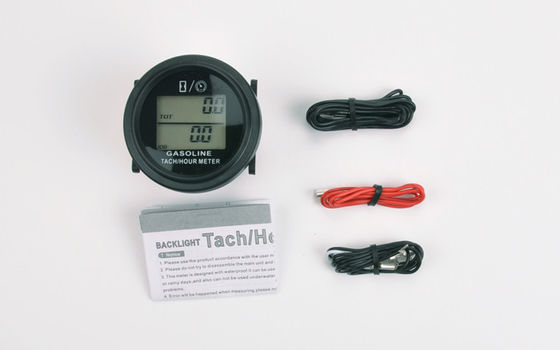

HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer

All Products
Hour Meter (35)
Certification
Good quality Air Qaulity Monitor for sales
Good quality Air Qaulity Monitor for sales
I'm Online Chat Now

HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer

China HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier
HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer supplier

Large Image :  HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-HM005L

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: 14.2USD

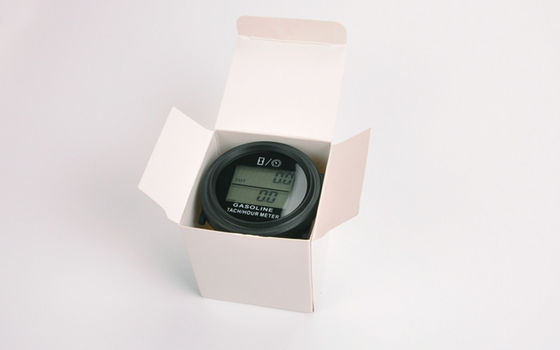

Packaging Details: White Box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Housing Materialerial: ABS Display Screen: LCD + White Backlight

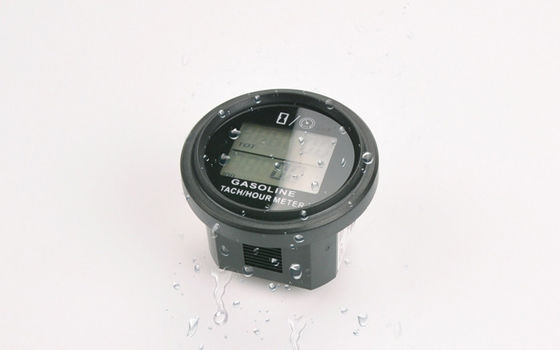

Button Type: Touch Switch Waterproof Rate: IP65
Hours Range: 0-99999.9

The LCD Tach/Hour meters track RPMs and running time for all types of gasoline powered engines. The operation of the Tach/Hour meter is connected by5 ft. insulated wire. You will wrap the rpm wire around the spark plug for around 5 times. The unit is activated by the spark of the engine.



Features :



Large LCD Display :23.6mm×30mm

Back-light is Connected with external power and engine started lit the back-light.

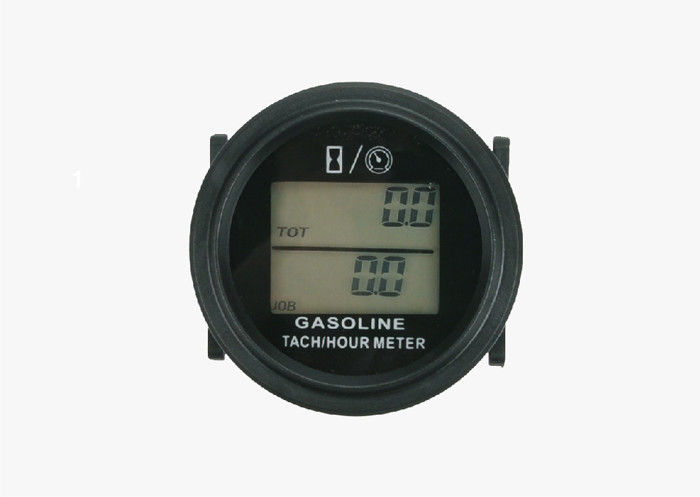

The LCD display TOT and current RPM when the engine is working

The LCD display TOT and JOB when the engine is working Standby

4 ignition way can be set Display MAX RPM 8 seconds after engine stopped

External power supply, voltage range:DC 6-48V / AC 12-48V

Internal CR2032 battery ,data storage for 25 years

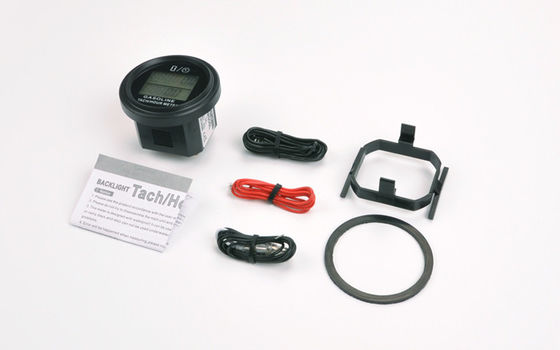

Put the product into hole of mounting plate and snap into the bracket from the bottom panel.



Specification :



HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer

HM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with TachometerHM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with TachometerHM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with TachometerHM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with TachometerHM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with TachometerHM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with TachometerHM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with TachometerHM005L Round LCD White Back-light Gasoline Inductive Tachometer Hour Meter with Tachometer
