CM-8826FN 0-1250um/0-50mil Magnetic Induction F Eddy Current NF Probe Coating Thickness Gauge

China CM-8826FN 0-1250um/0-50mil Magnetic Induction F Eddy Current NF Probe Coating Thickness Gauge supplier
CM-8826FN 0-1250um/0-50mil Magnetic Induction F Eddy Current NF Probe Coating Thickness Gauge supplier CM-8826FN 0-1250um/0-50mil Magnetic Induction F Eddy Current NF Probe Coating Thickness Gauge supplier CM-8826FN 0-1250um/0-50mil Magnetic Induction F Eddy Current NF Probe Coating Thickness Gauge supplier CM-8826FN 0-1250um/0-50mil Magnetic Induction F Eddy Current NF Probe Coating Thickness Gauge supplier

Large Image :  CM-8826FN 0-1250um/0-50mil Magnetic Induction F Eddy Current NF Probe Coating Thickness Gauge

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-CM8826FN

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: in color box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T, MoneyGram
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Measuring Range: 0~1250 Um / 0~50 Mil Min. Measuring Area: 6 Mm
Resolution: 0.1 Um / 1 Um Min. Sample Thickness: 0.3 Mm
Accuracy: ± 1~3%n Or ± 2.5 Um

 Features:



* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Automatic memory of calibration value,and automatic recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* Separate Type can provide several type probe, measure can be more flexibility.

Specification :

Operating Principle Magnetic Induction / Eddy Current (F / NF)
Measuring Range 0~1250 um / 0~50 mil
Resolution 0.1 um / 1 um
Min. Radius Workpiece F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm
Min. Measuring Area 6 mm
Min. Sample Thickness 0.3 mm
Accuracy ± 1~3%n or ± 2.5 um
Auto Power Off
Metric / Imperial Convertible
Battery Indicator Low Battery Indicator
Operating Conditions Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply 4 x 1.5 V AAA (UM-4) Battery
Dimensions 126 x 65 x 27 mm
Weight 81 g (Not Including Batteries)

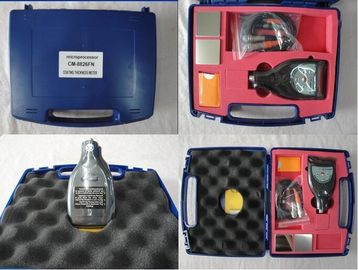

Standard Accessories:



1. Main Unit

2. Calibration Base Set (F Type / NF Type) CTG-BS

3. Calibration Foils CTG-CF (1 set, 4 pieces)

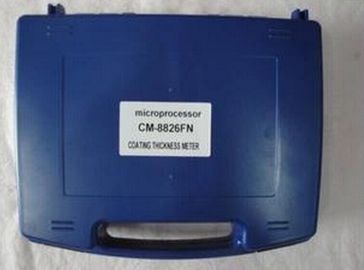

4. Carrying Case

5. Operation Manual



Optional accessories:



1. USB, RS-232C data cable with software
2. Bluetooth data out put with software



Application :



The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.The N probes measure the thickness of non-conductive coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.



CM-8826FN 0-1250um/0-50mil Magnetic Induction F Eddy Current NF Probe Coating Thickness Gauge
