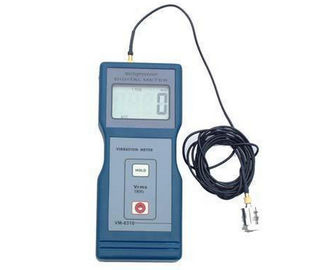

VM-6310 LCD Display Handheld Digital Vibration Meter Imbalance and Deflecting Tester For Moving Rotating Machine

China VM-6310 LCD Display Handheld  Digital Vibration Meter Imbalance and Deflecting Tester For Moving Rotating Machine supplier
VM-6310 LCD Display Handheld  Digital Vibration Meter Imbalance and Deflecting Tester For Moving Rotating Machine supplier VM-6310 LCD Display Handheld  Digital Vibration Meter Imbalance and Deflecting Tester For Moving Rotating Machine supplier

Large Image :  VM-6310 LCD Display Handheld Digital Vibration Meter Imbalance and Deflecting Tester For Moving Rotating Machine

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-VM6310

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: in color box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T, MoneyGram
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Velocity: 0.01~200 Mm/s Accuracy: < 5 %
Sensor: Piezoelectric Accelerometer

 Features :


* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.



Specification :





Sensor Piezoelectric Accelerometer
Measuring Range Velocity: 0.01~200 mm/s True RMS
Frequency Range Velocity: 10 Hz ~ 1k Hz
Accuracy < 5 %
Analogue Output AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
Max. Value Hold
Power Off Manual Power Off or Auto Power Off
Battery Indicator Low Battery Indicator
Data Output USB, RS-232, Bluetooth
Operating Conditions Temperature: 0~50 °C Humidity: <90 %RH
Power Supply 4 x 1.5V AA size (UM-3) Battery
Dimensions 160 x 68 x 32 mm
Weight 181 g (Not Including Batteries)





Application :

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.




User Manual of VM-6310 Vibration Meter.pdf
