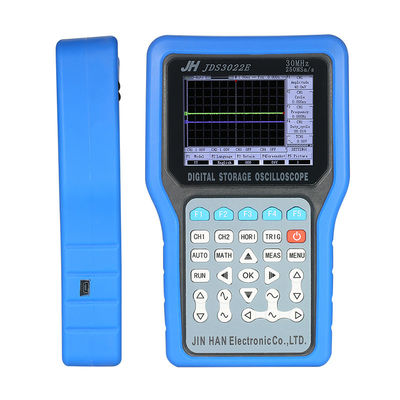

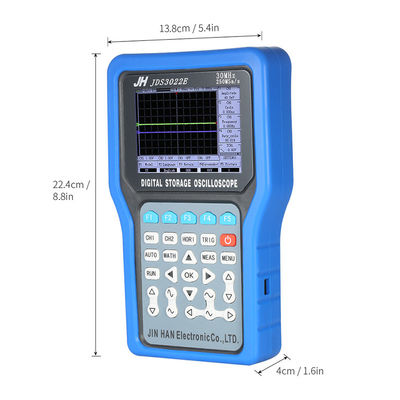

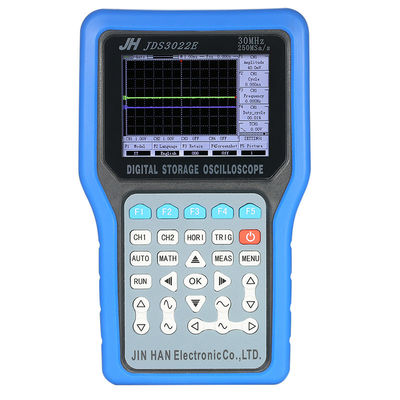

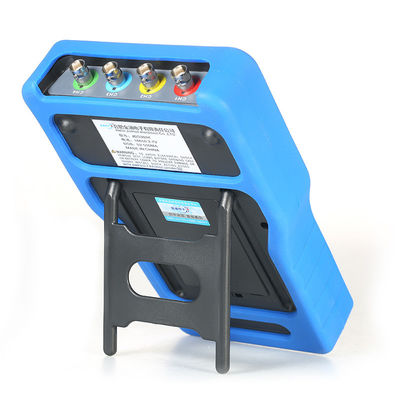

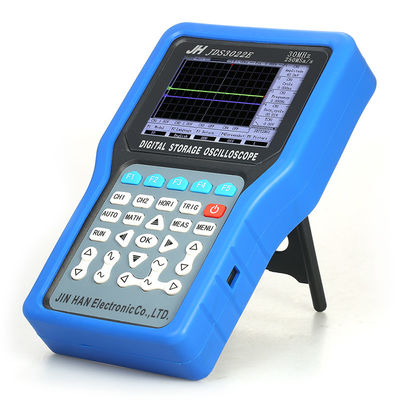

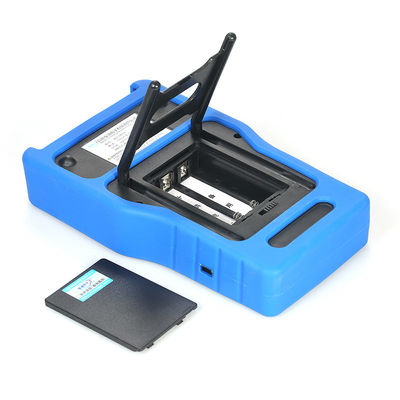

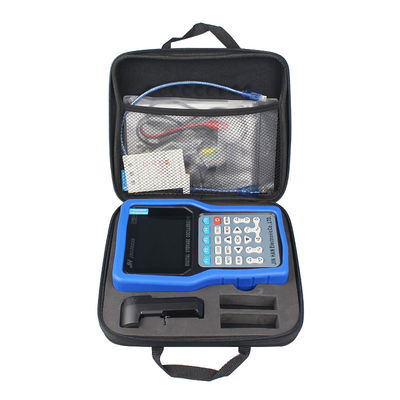

JDS3022E 100-240V 2-Channel 50MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope

Large Image : JDS3022E 100-240V 2-Channel 50MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope

Product Details:

Place of Origin:	China
Brand Name:	JINHAN
Certification:	CE ,Rohs
Model Number:	GS-JDS3022E

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	207.2USD
Packaging Details:	Color Box
Delivery Time:	3-5 days after confirm your payment for sample order or according to your order quantity
Payment Terms:	Paypal , Western Union or T/T
Supply Ability:	10000 pcs/month

Contact Now

Detailed Product Description

Maximum Sampling Rate:	500MSa/S	Bandwidth:	50MHz
Channels:	2	Vertical Resolution:	8 Bits
Vertical Accuracy:	±1%	Impedance:	1MΩ 25pF

Features :

Professional digital oscilloscope with 500MSa/s Max. sampling rate and 50MHz bandwidth.

Large 4.3inch Colorful TFT LCD display, easy and clear for reading.

Backlight brightness can be adjusted; color display/black and white display for selection.

Data storage with USB interface, 16K per channel storage depth.

Combined with signal generator function, can measure frequency, duty cycle, amplitude and offset.

Triggering modes: Automatic, Normal, Single. Includes time and voltage cursor, peak to peak/duty cycle/frequency/cycle measurement.

Rising/falling edge trigger available, which can measure 50Hz to 60MHz.

10 minutes/30 minutes/never mode of auto power off function.

Specification :

JDS3022E 100-240V 2-Channel 50MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope
