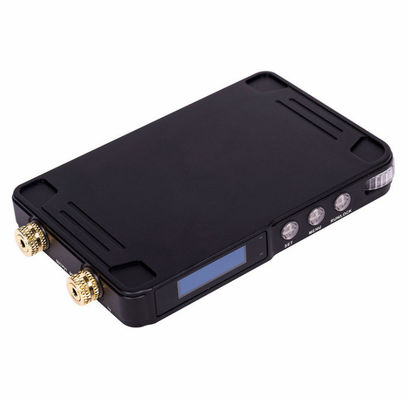

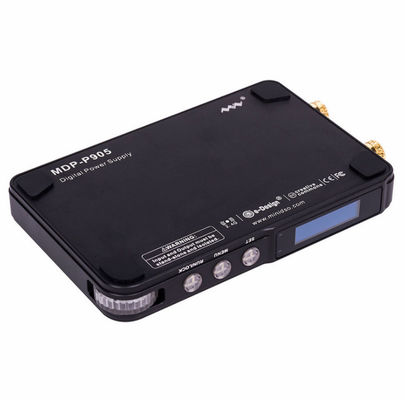

MDP-P905 30V 5A Adjustable Digital DC Power Supply Voltage Regulator 90W Mini Laboratory Programmable Linear Power Meter
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Output: | 30V / 5A , 90W | Ripple And Noise: | 250uVrms / 3mVpp |
|---|---|---|---|
| Transient Response Time: | ≤4uS | Line Loss Compensation Range: | 5mR - 100mR |
| Data Transfer Interface: | Micro USB Port |
Features :
It is a high cost-effective programmable linear DC power supply, featuring indicators, stability, reliability and distinct user interface comparable with professional power supplies;
It also provides programmable output, timing output, sequential control, automatic compensation and other powerful functions, so as to meet diversified testing needs;
High efficiency linear output, 0.25mV ripple wave, high-speed transient response, and supporting precise fine-tuning;
Automatically shut down and enter micro-power mode;
Support USB firmware upgrade and user calibration.
Main Parameters :
| Input |
DC4.2V-30V (After startup 2.7V), 100mA-6A, Support QC3.0 |
Output | 30V / 5A , 90W |
| Adjustment Rate |
Load Adjustment Rate < ±0.01^% Power Adjustment Rate < ±0.01^% |
Ripple and Noise | 250uVrms / 3mVpp |
| Transient Response Time | ≤4uS | Line Loss Compensation Range | 5mR - 100mR |
| Protection |
Input Over-voltage,Under-voltage,Anti-reverse, Output Anti-backflow,Over Temperature |
Data Record |
Max Storage: 7MB Max Recording Time: 24 Hours |
Product Specification:
| Data Transfer Interface | Micro USB port | Net Weight |
MDP-P905 143g |
| Certification | Compliant with EU Certification CE FCC |

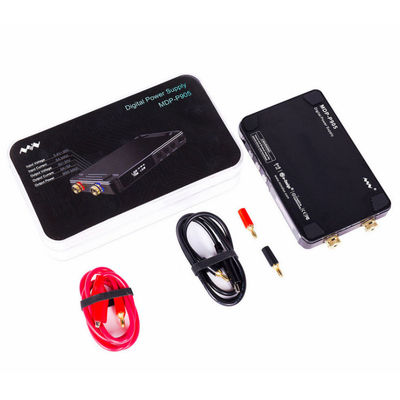

Packing List :
MDP-P905 Digital Power Supply x 1
Output Cable(4.0mm Banana to Alligator)x 2
Safety Instructions x 1
