JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope

China JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier
JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope supplier

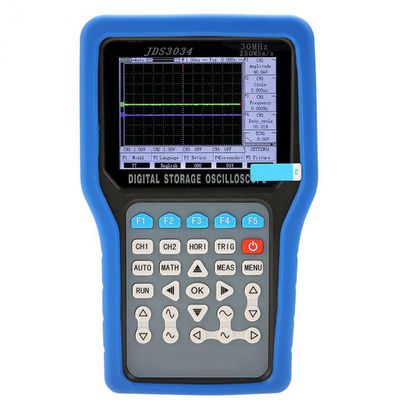

Large Image :  JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope

Product Details:

Place of Origin: China
Brand Name: JINHAN
Certification: CE ,Rohs
Model Number: GS-JDS3034

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 277.2USD
Packaging Details: Color Box
Delivery Time: 3-5 days after confirm your payment for sample order or according to your order quantity
Payment Terms: Paypal , Western Union or T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Maximum Sampling Rate: 250MSa/S Bandwidth: 30MHz
Channels: 4 Vertical Resolution: 8 Bits
Vertical Accuracy: ±3% Impedance: 1MΩ 25pF

Features :

Professional digital oscilloscope with 250MSa/s Max. sampling rate and 30MHz bandwidth.
Large 4.3inch Colorful TFT LCD display, easy and clear for reading.
Backlight brightness can be adjusted.
Data storage with USB interface, 16K per channel storage depth.
Triggering modes: Automatic, Normal, Single.
Includes time and voltage cursor, peak to peak/duty cycle/frequency/cycle measurement.
Rising/falling edge trigger available, which can measure 50Hz to 60MHz.
10 minutes/30 minutes/never mode of auto power off function.
Powered by 2 * 18650 3.7V lithium battery(not included), with battery charger for convenient charging.

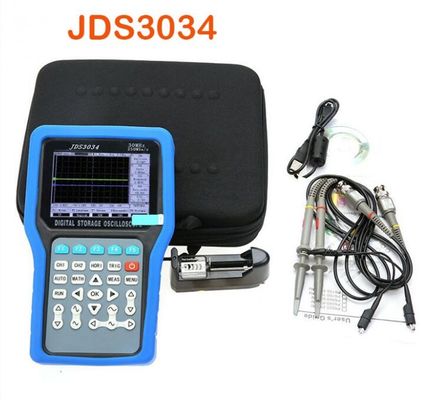

Comes with a protective bag, easy to storage and carry.



Specification:

Plug Type: US .EU
Material: ABS

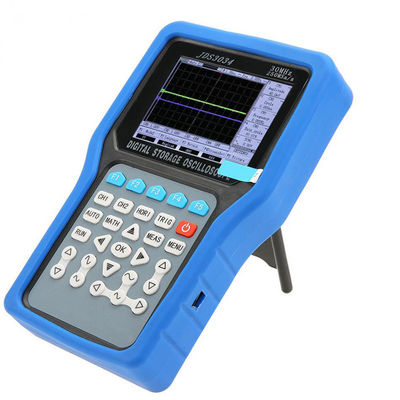

Display: Full Color 4.3" TFT LCD Display(400 * 272 pixels)
Sampling Rate: 250MSa/s

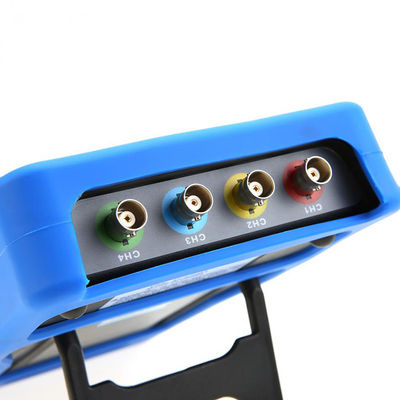

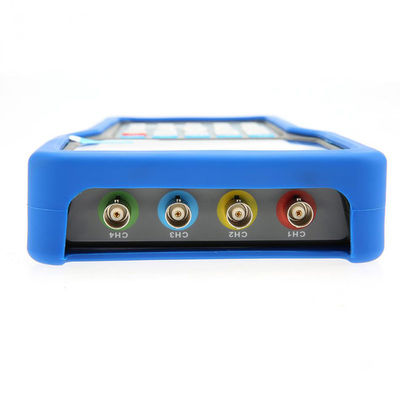

Channel: 4
Bandwidth: 30MHz
Vertical Resolution: 8bit
Input Range: 10mV-5V 1x; 100mV-50V 10x; 1V-500V 100x(1-2.5-5 Step)
Vertical Accuracy: +/-3%
Impedance: 1MΩ 25pF
Input Coupling: AC/DC
Display Mode: X-Y;Y-T
Input Voltage: 40V(x1); 400V(x10); 4000V(x100)
Time Range: 10ns-50ms(1,2.5,5 step) 100ms-5s(Scan)
Storage Depth: 16K per channel
Trigger Mode: Automatic, Normal, Single
Trigger Type: Rising/Falling Edge Trigger
Automatic Measurement: 50Hz-60MHz
Measurement: Peak to Peak/Duty Cycle/Frequency/Cycle
Cursor: Time, Voltage

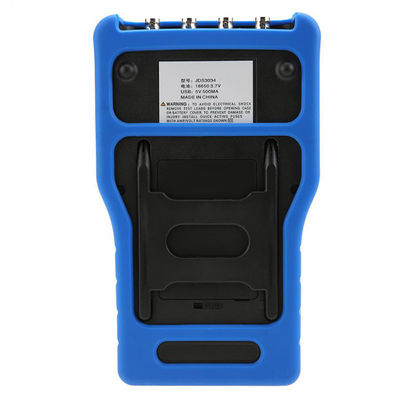

Power Supply: 2 * 18650 3.7V Battery(Not included packge)
Operation Environment: 0-50°C, 0-80%RH
Storage Environment: -20-60°C, 0-90%RH
Item Size: Approx. 22.4 * 13.8 * 4cm / 8.8 * 5.4 * 1.6in
Item Weight: Approx. 654g / 23.1oz
Package Size: Approx. 25.4 * 23.4 * 7.5cm / 10 * 9.2 * 3in
Package Weight: Approx. 1347g / 47.5oz
JDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage OscilloscopeJDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage OscilloscopeJDS3034 100-240V 4-Channel 30MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope
