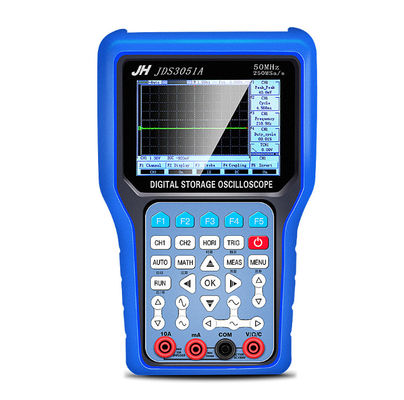

JDS3051A 100-240V 2-Channel 50MHz 250MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Maximum Sampling Rate: | 250MSa/S | Bandwidth: | 50MHz |
|---|---|---|---|
| Channels: | 2 | Vertical Resolution: | 8 Bits |
| Vertical Accuracy: | ±1% | Impedance: | 1MΩ 25pF |
Features :
1. This instrument integrates oscilloscope, signal generator and multimeter, it is powerful and practical.
2. With color TFT screen, it can display clear and stable waveforms and is easy to use.
3. It has a high-performance sampling channel with a sampling rate of 250MSa/S and a maximum bandwidth of 50MHz.
4. Support multimeter function, 6000 counts, measuring DC voltage, AC voltage, DC current, AC current, resistance and so on.
5. Handheld digital oscilloscope, light weight, small size, portable, easy to carry and operate.
Specification :
| Maximum Sampling Rate | 250MSa/S |
| Analog Channel | 1 |
| Digital Channel | 1 |
| Bandwidth | 50MHz |
| Vertical Resolution | 8 Digits |
| Vertical Gear | 10mV-5V (Probe 1X) |
| 100mV-50V (Probe 10X) | |
| 1V-500V (Probe 100X) | |
| (1, 2.5, 5 Steps) | |
| Input Resistance | 1MΩ 25pF |
| Input Coupling | ACDC |
| Display Mode | Y-T |
| Input Voltage | 40V (Probe 1X) |
| 400V (Probe 10X) | |
| 4000V (Probe 100X) | |
| Time Base | 10ns-50ms (1, 2.5, 5 Steps) |
| 100ms-5s (Scan) | |
| Storage Depth | 16k |
| Trigger Mode | Automatic, Normal, Single |
| Trigger Type | Rise, Fall |
| Automatic Detection | Support (50Hz-60MHz) |
| Measuring | Peak-to-peak Value, Duty Cycle, Frequency, Period, Maximum, Minimum, Average, Root Mean Square |
| Cursor | Time, Voltage |
| Multimeter Function | |
| Full Scale Reading | 6000 Count |
| DC Voltage | 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V |
| AC Voltage | 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 750V |
| DC Current | 60.00mA/600.0mA, 6.000A/10.00A |
| AC Current | 60.00mA/600.0mA, 6.000A/10.00A |
| Resistance | 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ |
| Capacitance | 40.00nF, 400.0nF, 4.000μF, 40.00μF, 400.0μF, 4000μF (Use this function to maintain 30s at both ends of the capacitance) |
| Diode | 0V~2.0V |
| On-off Detection | Detect in 600.0Ω Level, Make a Sound When Below 30Ω |
| Signal Generator | |
| Frequency | Sine (1Hz-20MHz), Square (1Hz-5MHz), Triangular / Ramp (1Hz-1MHz) |
| Duty Cycle | 0%-100% |
| Amplitude | 100mV-4V |
| Offset | +- (0V-2V) |
| Serial Port Center | |
| Baud Rate | 115200-1200 |
| Data Bit | 8, 9 |
| Check Digit | No Parity, Odd Parity, Even Parity |
| Stop Bit | 1, 0.5, 2, 1.5 |
| Decimal | 10, 16 |
| Recorder | |
| Time Base | 100ms-5s |
| Record Length | Record a set of waveforms per second, up to ten minutes |
| Others | |
| Screen | 4.5 Inch, 16-bit True Color, TFT 400x272 |

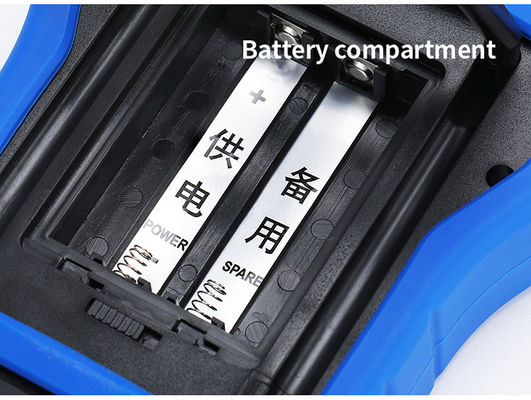

| Battery | 2 x Lithium Battery (18650)(Battery Not Included), can work continuously for 8-10 hours |
