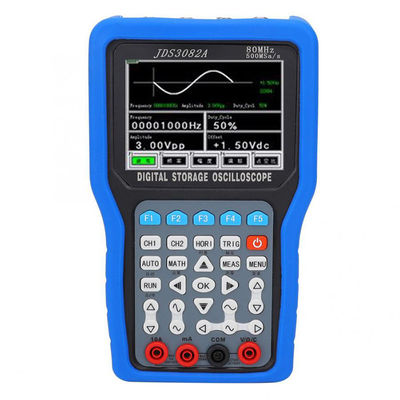

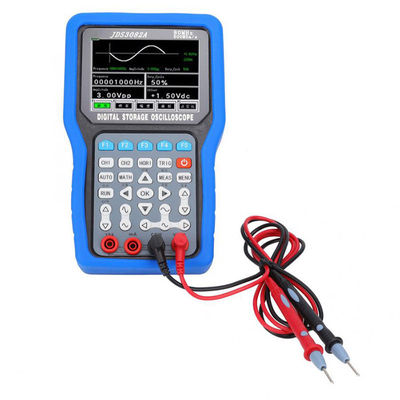

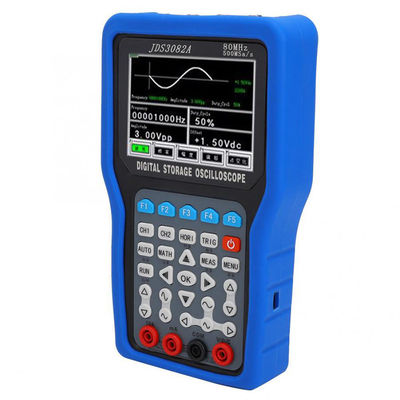

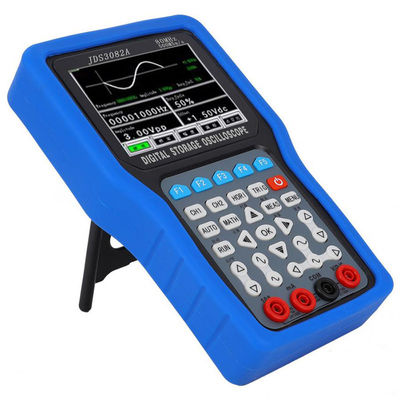

JDS3082A 100-240V 2-Channel 80MHz 500MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Maximum Sampling Rate: | 500MSa/S | Bandwidth: | 80MHz |
|---|---|---|---|
| Channels: | 2 | Vertical Resolution: | 8 Bits |
| Vertical Accuracy: | ±1% | Impedance: | 1MΩ 25pF |
Features :
1. This multifunctional digital oscilloscope is powerful in function, practical to use and has long service life.
2. High-performance sampling channel with sampling rate up to 500MSa/S and maximum bandwidth up to 80MHz.
3. This digital oscilloscope uses a color TFT screen to display clear and stable waveforms and is reliable to use.
4. 2 analog channel handheld digital oscilloscope, easy to operate, easy to use, portable and easy to carry.
5. This instrument supports recorder function, signal generator function, serial port center function, multimeter function and oscilloscope function.
Specification :
| Oscilloscope Function | |
| Maximum Sampling Rate | 500MSa/S |
| Analog Channel | 2 |
| Digital Channel | No |
| Bandwidth | 80MHz |
| Vertical Resolution | 8 Digits |
| Vertical Gear | 10mV-5V (Probe 1X) |
| 100mV-50V (Probe 10X) | |
| 1V-500V (Probe 100X) | |
| (1, 2.5, 5 Steps) | |
| Input Resistance | 1MΩ2%, 20±5pF |
| Input Coupling | ACDC |
| Display Mode | Y-T, X-Y |
| Input Voltage | 40V (Probe 1X) |
| 400V (Probe 10X) | |
| 4000V (Probe 100X) | |
| Time Base | 10ns-50ms (1, 2.5, 5 Steps) |
| 100ms-5s (Scan) | |
| Storage Depth | 16k per Channel |
| Trigger Mode | Automatic, Normal, Single |
| Trigger Type | Rise, Fall |
| Automatic Detection | Support (50Hz-60MHz) |
| Computation | CH1+CH2, CH1-CH2, CH2-CH1 |
| Measuring | Peak-to-peak, Duty Cycle, Frequency, Period, Maximum, Minimum, Average, Root Mean Square |
| Cursor | Time, Voltage |
| Multimeter Function | |
| Full Scale Reading | 6000 Count |
| DC Voltage | 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V |
| AC Voltage | 60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 750V |
| DC Current | 60.00mA/600.0mA, 6.000A/10.00A |
| AC Current | 60.00mA/600.0mA, 6.000A/10.00A |
| Resistance | 600.0Ω, 6.000kΩ, 60.00kΩ, 600.0kΩ, 6.000MΩ, 60.00MΩ |
| Capacitance | 40.00nF, 400.0nF, 4.000μF, 40.00μF, 400.0μF, 4000μF (Use this function to maintain 30s at both ends of the capacitance) |
| Diode | 0V~2.0V |
| On-off Detection | Detect in 600.0Ω Level, Make a Sound When Below 30Ω |
| Signal Generator | |
| Frequency | Sine (1Hz-20MHz), Square (1Hz-5MHz), Triangular / Ramp (1Hz-1MHz) |
| Duty Cycle | 0%-100% |
| Amplitude | 100mV-4V |
| Offset | +- (0V-2V) |
| Serial Port Center | |
| Baud Rate | 115200-1200 |
| Data Bit | 8, 9 |
| Check Digit | No Parity, Odd Parity, Even Parity |
| Stop Bit | 1, 0.5, 2, 1.5 |
| Decimal | 10, 16 |
| Recorder | |
| Time Base | 100ms-5s |
| Record Length | Record a set of waveforms per second, up to ten minutes |
| Others | |
| Screen | 4.5 Inch, 16-bit True Color, TFT 400x272 |
| Battery | 2 x Lithium Battery (18650)(Battery Not Included), can work continuously for 8-10 hours |
