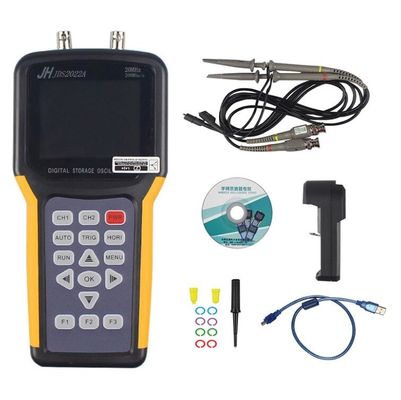

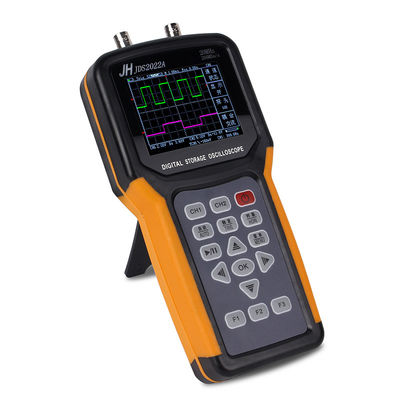

JDS2022A 100-240V 2-Channel 20MHz 200MSa/S TFT LCD Display Handheld Digital Storage Oscilloscope
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Maximum Sampling Rate: | 200MSa/S | Bandwidth: | 20MHz |
|---|---|---|---|
| Channels: | 2 | Vertical Resolution: | 8 Bits |
| Vertical Accuracy: | ±1% | Impedance: | 1MΩ 25pF |
Features :
—New ultra-thin design, small volume, light weight, convenient carrying
—Color TFTLCD display, 320*240 resolution, waveform display more clearly, stability
—Dual analog channel (JDS2012A for single channel)
—Support for USB storage device
—Have the edge trigger function, can automatically detect the support (50Hz - 40MHz)
—Support time and voltage cursors
—Support A variety of waveforms mathematical sum
—Support Chinese and English menu display
—A variety of display styles: color display, monochrome display
—Supports automatic power off and power-saving modes: time can be set
—Backlight brightness can be adjusted
—Waveforms can be saved by screenshot
—Long standby: single cell battery can work continuously for 5 hours
Specification:
| imput | |
| Input coupling | AC, DC |
| Input impedance | 1MΩ 25pF |
| The maximum input voltage | 40V (probe X1); 400V (probe ) can be measured 220V voltage; (probe 0) 2000V voltage can be measured |
| Probe attenuation | 1 ,10 |
| Set the probe attenuation factor | 1 , 10 ,100 |
| Signal acquisition system | |
| Sampling Method | Real-time sampling, random sampling |
| Memory depth | 4K (per channel for each 2K) |
| cquisition Mode | Sample, Detect |
| Vertical System | |
| Vertical Sensitivity |
10mV-5V (Probe 1 ) 100mV-50V (probe 10 ) (1,2.5,5 step) |
| Vertical accuracy | +/-3% |
| Vertical resolution | 8bit |
| Bandwidth | 20MHz |
| Horizontal Systems | |
| Real-time sampling rate | 200 MSa/s |
| Horizontal scan range | 10nS/div-5S/div |
| Trigger System | |
| Mode | uto, Normal and Single |
| Type | Rising edge trigger, falling edge trigger |
| Automatic detection | Support (50Hz-40MHz) |
| Math | CH1+CH2,CH1-CH2,CH2-CH1 |
| Measurement System | |
| Cursor measurements |
Support time and voltage cursors |

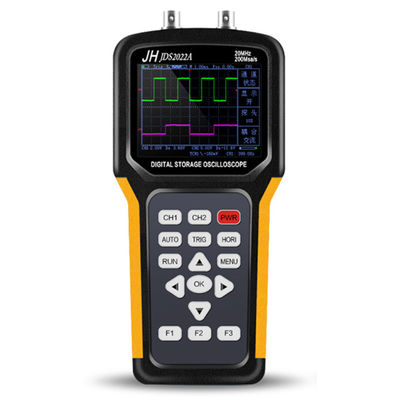

| Measurements | Manual |
| Measure | and frequency |
| Equipment | |
| Screen | 3.2-inch, 16-bit true color, TFT, 320 * 240 |

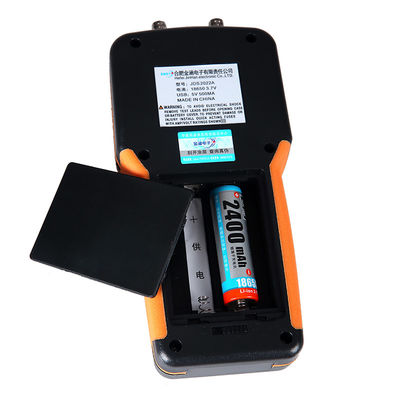

| Battery | 1*18650 Battery(not included) |
| Size | as the picture shows |
| Weight | pprox.811g~820g/28.6oz~28.9oz |
