Housing Material: | PC+ABS | Measuring Range: | 0 To 360°(4*90°) |
---|---|---|---|
Resolution: | 0.01° At 0° And 90°, 0.05° At The Rest Angles | Accuracy: | ±0.1° At 0° And 90°: ±0.2° At The Rest Angles |

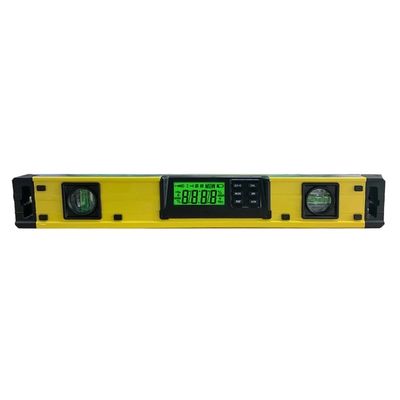

DL400 | Length | 450mm 17.7 inch level with 2 bubbles |
Horizontal Level Measuring Range | 0 to 360°(4*90°) | |
Resolution | 0.01° at 0° and 90°, 0.05° at the rest angles | |
Accuracy | ±0.1° at 0° and 90°: ±0.2° at the rest angles | |
Housing Materials | PC+ABS | |
Working Temperature | 0~40℃ | |

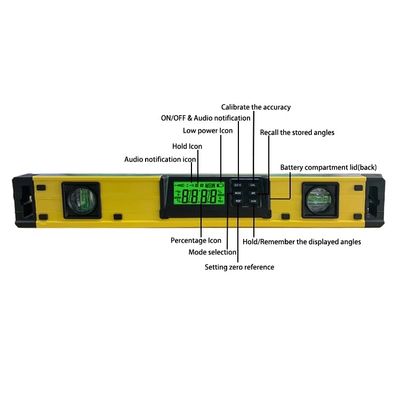

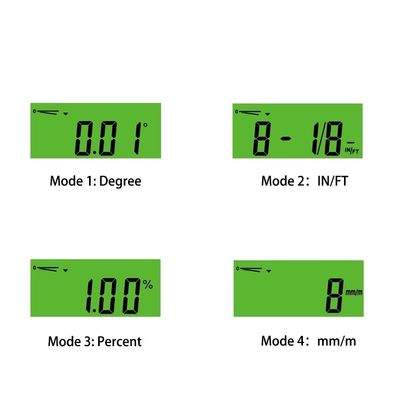

Product Feature | 1.Measures angle in ° degrees, % percent, mm/m, IN/FT slope or pitch 2.Audible tone at level, plump and setting angle 3.Automatic shut-off after 3 minutes 4.Set Zero function at any angle 5.Low battery indicate 6.Auto-reverse reading of LCD display 7.Backlight LCD for bright values display 8.Self checking accuracy 9.Self calibration 10.Hold-function to freeze the measurement 11.Horizontal & vertical 2 vial bubbles 12.Memory & Memory recall (8 sets values) 13.Build in magnets at the base of aluminium 14.Operated by DC 3V (2*LR03 AAA 1.5V batteries, not included) 15.IP54 waterproof & dustproof industrial standard |
|

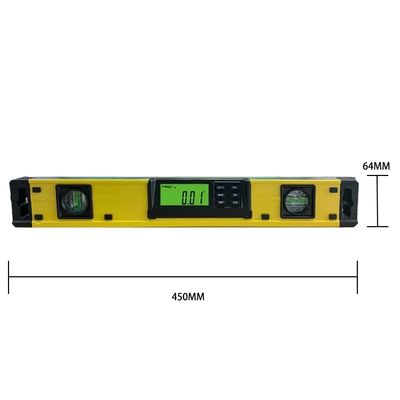

Packaging | Packaging: Soft Bag+Color Box Single product: 450*28*64mm(L*W*H)/ 400g Packing: 8*4*47CM/ 530g Export carton: 25PCS/ 47*23.5*49CM/ 15.0KGS |
|

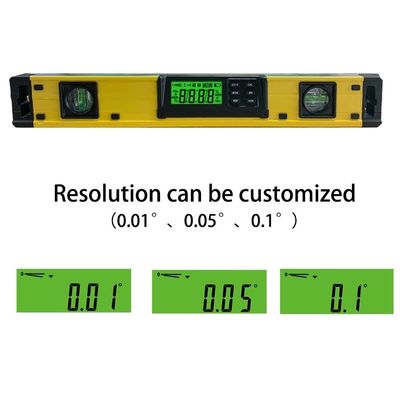

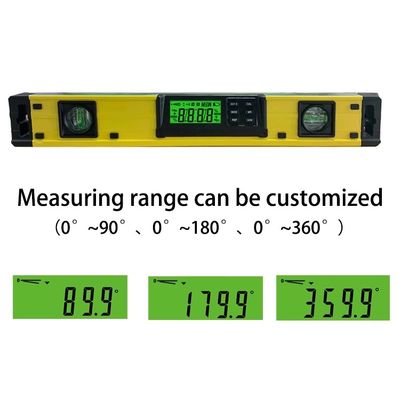

Special Function | 1) Resolution: 0.01°; 2) Resolution: 0.05°; 3) Resolution: 0.1°. Resolution could be customized from above options. Horizontal level measuring range: 1) 4*90°; 2) 2*180°; 3) 1*360°. Measuring ranges could be customized from above options. Memory & Memory recall (8 sets values) Big LCD with backlight display. Build in magnets at the base of measurement surface, firmly attach to ferrous metal surfaces. IP54 waterproof & dustproof industrial standard. |
