DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet

All Products
Hour Meter (35)
Certification
Good quality Air Qaulity Monitor for sales
Good quality Air Qaulity Monitor for sales
I'm Online Chat Now

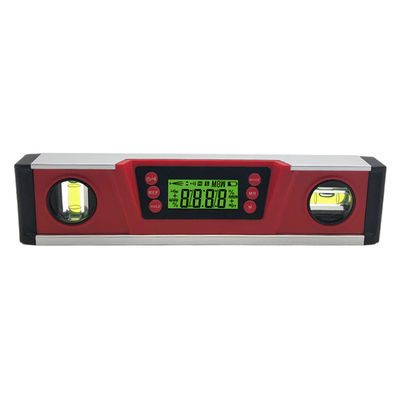

DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet

China DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet supplier
DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet supplier DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet supplier DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet supplier DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet supplier DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet supplier DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet supplier

Large Image :  DL136 High Precision 10 Inch LCD Display Digital Aluminum Electronic Spirit Level With Magnet

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-DL136

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 24.8USD
Packaging Details: Soft Bag+Gift Box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Length: 10 Inch Measuring Range: 0 To 360°
Resolution: 0.05° Accuracy: ±0.1° At 0° And 90°: ±0.2° At The Rest Angles
Working Temperature: 0~40℃

Specification :

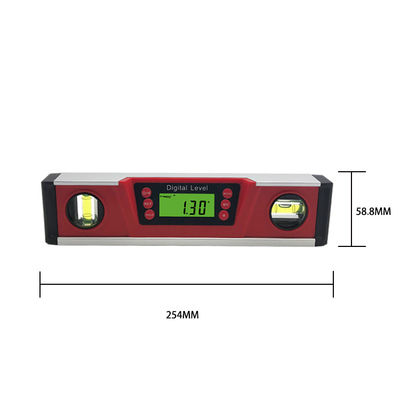

DL136 Length 25.4cm 10 inch level with 2 bubbles, 254*28*58.8mm(L*W*H)
Horizontal Level Measuring Range 0 to 360°(4*90°)
Resolution 0.05°
Accuracy ±0.1° at 0° and 90°: ±0.2° at the rest angles
Working Temperature 0~40℃

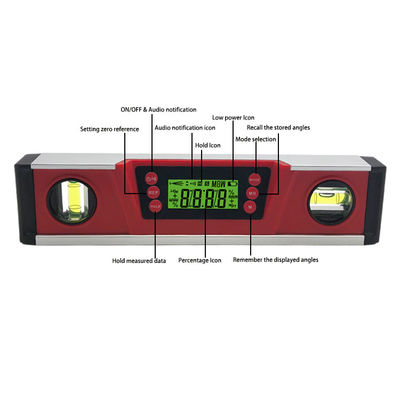

Product Feature

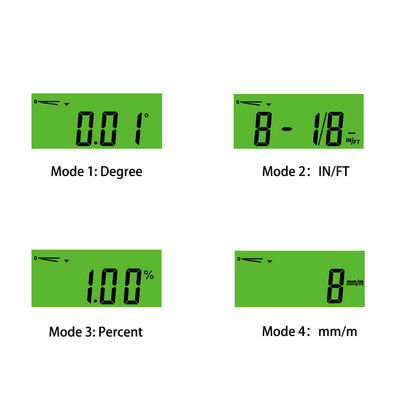

1.Measures angle in ° degrees, % percent, mm/m, IN/FT slope or pitch
2.Audible tone at level, plump and setting angle
3.Automatic shut-off after 3 minutes
4.Set Zero function at any angle
5.Low battery indicate
6.Backlight LCD
7.Self checking accuracy
8.Self calibration
9.Hold-function to freeze the measurement
10.Build in magnets at the base of aluminium
11.Horizontal & vertical 2 vial bubbles
12.Auto-reverse reading of LCD display
13.V-groove at the base of measurement surface, for easy measuring on round pipe
14.Operated by DC 3V (2*LR03 AAA 1.5V batteries, included)
15.IP54 waterproof & dustproof industrial standard

16.Memory recall (8 Sets Values)

Packaging PACKING: Soft Bag+Gift Box
CONTANTS: 24PCS
N.W: 10.0KGS
G.W: 11.0KGS
Export carton: 34*49*47cm

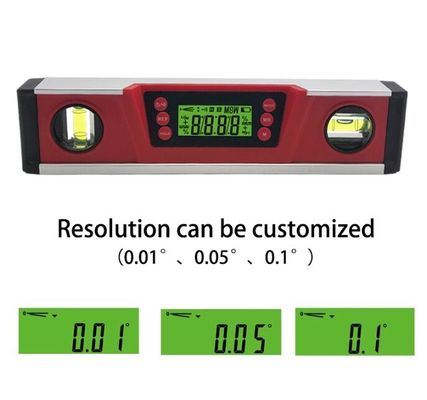

Special Function 1. Resolution: 0.01°;
2. Resolution: 0.05°;
3. Resolution: 0.1°.
Resolution could be customized from above options.

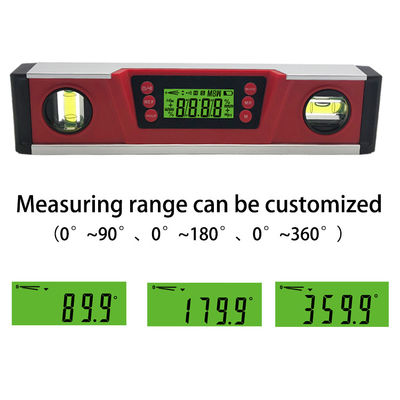

Horizontal level measuring range:
1. 4*90°;
2. 2*180°;
3. 1*360°.
Measuring ranges could be customized from above options.

Big LCD with backlight display.

MAGNETIC and V-groove base firmly attach to ferrous metal surfaces.

IP54 waterproof & dustproof industrial standard.
