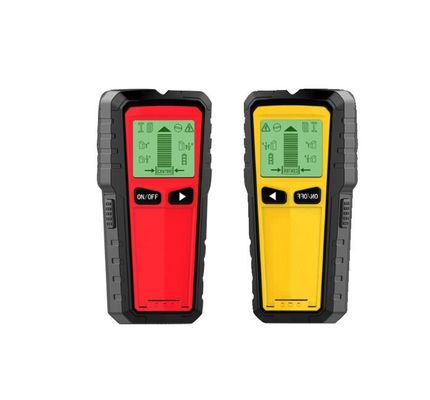

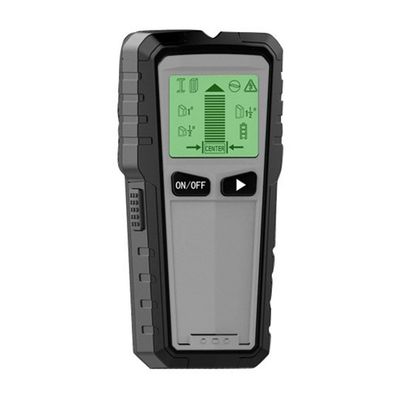

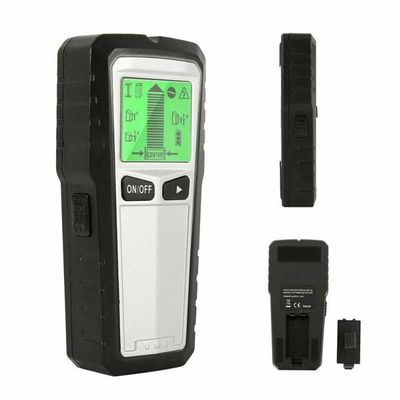

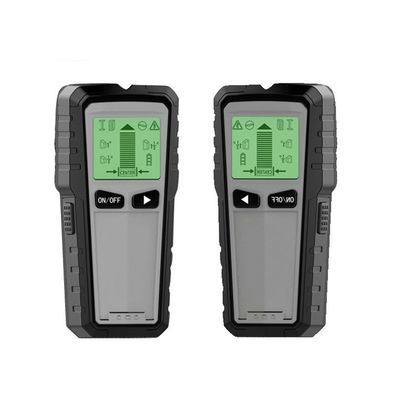

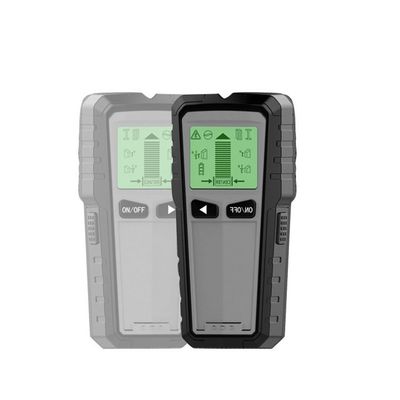

TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center

China TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center supplier
TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center supplier TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center supplier TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center supplier TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center supplier TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center supplier

Large Image :  TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-TH430

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: 10.8USD
Packaging Details: Blister+Card
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T, MoneyGram, L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Detection Objects: Wood Joists, AC Live Wires & Metals Material: ABS
Power Supply: 1 X 9V Battery Operating Temperature: 0~40°C
Color: Grey , Yellow , Red

Bullet Points:



1,5-in-1 Stud Finder Wall Scanner: This stud finder includes 5 different scanning modes, which is provides users with more detection needs. It suitable for woods, beam, joist, metals,AC wires and deeply embedded objects behind floor, ceiling, wall. Stud mode detects wooden beams and joists in drywall.
2,Multi-modes Detection: Our wall scanner detector with 5 scanning modes, including about 1/2 inch/13 mm scan mode locates the center and edges of wood; medium scan locates the center and edges of wood up to 1 inch(25 mm) deep; Deep scan locates the center and edges of wood up to about 1.5 inch /38 mm depth. Metal scan detects metal up to about 2.36 inch/60 mm depth; AC scan detects live up to about 2 inch/51 mm depth.
3,Upgrade Design of LCD Screen: The wall detector with a graphical LCD backlight, which can indicate accurate directions and show detection mode, signal strength, center pointing, low battery indication.With LCD backlighting, it provides a clear appearance even in low light conditions, showing the exact location of the detected materials and materials. Audio indication with a beep detector. The sound and visible hints let the user know.
4,Simple to Use: Select the probe type, then just press and hold the side button and scan horizontally across the object surface.Hold the tool straight up and down , parallel to the studs , and do not rotate the tool.Keep tool flat against the wall and do not rock , tilt , or press hard when slowly sliding across the surface being scanned.Avoid placing your other hand , or any other part of your body , on the surface being scanned.
5,Quickly And Accurately: Slowly slide tool across surface.A bottom pointed arrow and indication will illuminate ,indicating location of the stud edge.Continue sliding tool. When the center of a stud is located , the full bars on the Signal Strength Indicator , the pointed arrow on the top of the bars the center indication will all show and the buzzer will sound.Auto power off without any operation after 60 seconds.



Features:



1. Quickly detect the center position of the wooden stem.
2. Digital LCD display, easy to read.
3. The center of the wooden stem can be detected, and the wall thickness is about 1/2 inch /13 mm.
4. Detectable wood stem center with a wall thickness of about 1 inch /25 mm.
5. Detectable wood stem center with wall thickness of about 1 1/2 inch /38 mm.
6. Detects iron, lead, aluminum and other metals with a wall thickness of about 2.36 inch/ 60 mm.
7. Detectable live wires in the wall, the wall thickness is within about 2 inch /51 mm.
8. All detection functions have automatic correction function, for maximum reliability to the user.
9. All detection functions have AC alert function.
10. Measure the edge of the wooden stem file.
11. With low voltage display.
12. Wood stem center detector with probe metal and voltage function.
13. Locate metal studs, pipes, steel bars, walls, joists behind floors and ceilings, and the edges and center of live wires quickly.

Specifications:


Model: TH403
Color: grey , Yellow , Red
Shell material: ABS
Power supply: 1x 6F22 9V battery
Measuring range: about 13-60MM/0.51-2.36inch
Measurement accuracy: about 13-60MM/0.51-2.36inch
Operating temperature: 0℃-40℃
Weight: about 168g / 5.92oz
Size: about 164*75*34mm / 6.45*2.95*1.33in
Package weight: about 233g / 8.21oz
Package size: about 185*85*45mm / 7.28*3.34*1.77in
Operation tips:
1. Select the probe type, then just press and hold the side button and scan horizontally across the object surface.
2. Keep tool flat against the wall and do not rock,tilt,or press hard when slowly sliding across the surface being scanned.
3. A bottom pointed arrow and indication will illuminate,indicating location of the stud edge.
4. Continue sliding tool. When the center of a stud is located , the full bars on the Signal Strength Indicator, the pointed arrow on the top of the bars the center indication will all show and the buzzer will sound.

Packing List:


1*Metal Detector
1*User Manual

TH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber centerTH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber centerTH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber centerTH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber centerTH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber centerTH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber centerTH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber centerTH430 5 In 1 LCD Display Electronic AC Wire/Metal/Stud Finder With Audio Alarm For Timber center
