TS78B 3 In 1 Multi-Function Stud Finder Wire Metal Wood Detectors Find AC Voltage Live Wire Behind Wall

China TS78B 3 In 1 Multi-Function Stud Finder Wire Metal Wood Detectors Find AC Voltage Live Wire Behind Wall supplier
TS78B 3 In 1 Multi-Function Stud Finder Wire Metal Wood Detectors Find AC Voltage Live Wire Behind Wall supplier TS78B 3 In 1 Multi-Function Stud Finder Wire Metal Wood Detectors Find AC Voltage Live Wire Behind Wall supplier TS78B 3 In 1 Multi-Function Stud Finder Wire Metal Wood Detectors Find AC Voltage Live Wire Behind Wall supplier TS78B 3 In 1 Multi-Function Stud Finder Wire Metal Wood Detectors Find AC Voltage Live Wire Behind Wall supplier TS78B 3 In 1 Multi-Function Stud Finder Wire Metal Wood Detectors Find AC Voltage Live Wire Behind Wall supplier

Large Image :  TS78B 3 In 1 Multi-Function Stud Finder Wire Metal Wood Detectors Find AC Voltage Live Wire Behind Wall

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-TS78B

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: 4.2USD
Packaging Details: Blister+Card
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T, MoneyGram, L/C
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Material: ABS Color: Orange+Black
Detection Objects: Wood Joists, AC Live Wires & Metals Power Supply: 1 X 9V Battery
Operating Temperature: 5~40°C

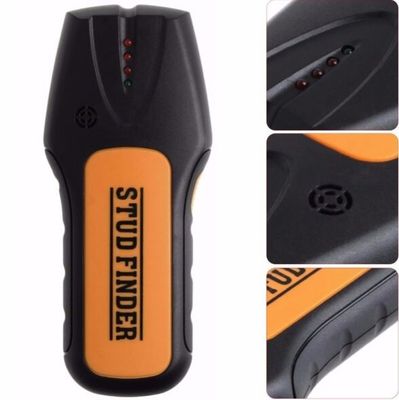

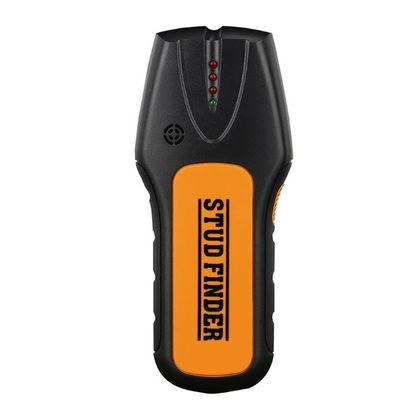

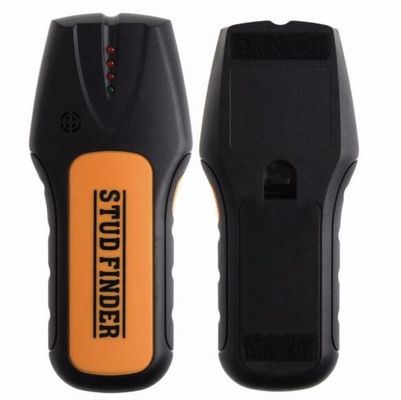

This Intelligent Stud Finder makes wall scanning fast and simple. It can detect stud & joist, AC live wires or metals behind walls through electronic signals and shows it on LED display, exactly where the center and edges of your stud actually are. It calibrates automatically after starting up with sensitive induction. Plus, it has a built-in marker slot so you can mark the spot one-handed.


Features :

Metal scan mode locates metal pipes or rebar
Automatic calibration on power
Easily find the edges and center
manual adjustment of sensitivity, 4 LED light indicates esensitivity
Audible indication (beep) when target is detected
Easy to operate and carry



Specification:

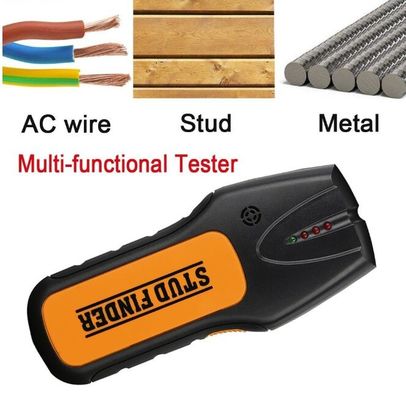

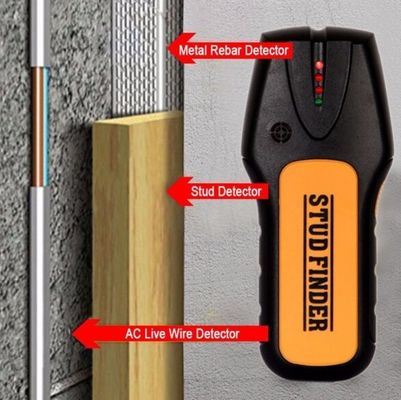

Detection Objects: Wood joists, AC Live Wires & Metals
Detection Capability:
Wood joists: thickness of wall is 19.05mm (3/4 inches)
AC Live Wires: 50.80mm (2 inches) deep away from the wall
Metals: 38.10mm (1 1/2 inches) deep away from the wall
Power Supply: 1 x 9V battery
Battery Life: 1 year with normal use
Operating Temperature: 5~40°C
Size: 144x63x27mm
Weight: About 70g


Sampling:
Put detector on measured surface, press the power button. The first red LED and green LED are on, and heard a "Di" sound. When the red LED goes out, it said sampling is OK. If the first red LED and “Di” sound keeps on, it said sampling failed.

Operation:
When sampling is OK, don't release the power button. Move along measured surface, when detect STUD, red LEDs in turn light; When all red LEDs light and sound "Didi..", mark this first position, then release the power button.
Put detector on measured surface, re-sampling and move from opposite side to the first marked position. When detect STUD, red LEDs in turn light; When all red LEDs light and sound "Didi..", mark this second position, then release the power button.
Repeat test for some times, if the alarm is repeat. STUD may exist between the first and second marked position.
Keep detector far from test object, move the knob till it sounds and shines. Move back a little to stop sound and shine.
Detector will not shine or sound when there is no metal or STUD.
Test for some times to get a accurate result.

Power supply: one 9V 6F22 battery
Product size: 145x62x25mm
Product weight: about 71g (without battery)
Standard accessories: meter (without battery), battery, manual



Packing details

Packing: single blister

Packing quantity: 60PCS/CTN

Carton size: 52x29x27CM

G.W. / N.W.:8.5/8KG


Application :

Wires and pipelines distribution on upholstery, installation of electrical equipments (air conditioner and oil smoke extractor)
Frame of wood furniture detection
Hang mirror, picture, cabinet, and shelves securely
Install grab bar, ceiling fan, and chandelier
Find metallic pipes in concrete
Find electrical box, exhaust vent, conduit, rebar, and ducting
Trace hot wires behind ceiling, floor and wall
In construction and interior decoration
Detection of structures for installation of wooden furniture
Installation of doors and windows
