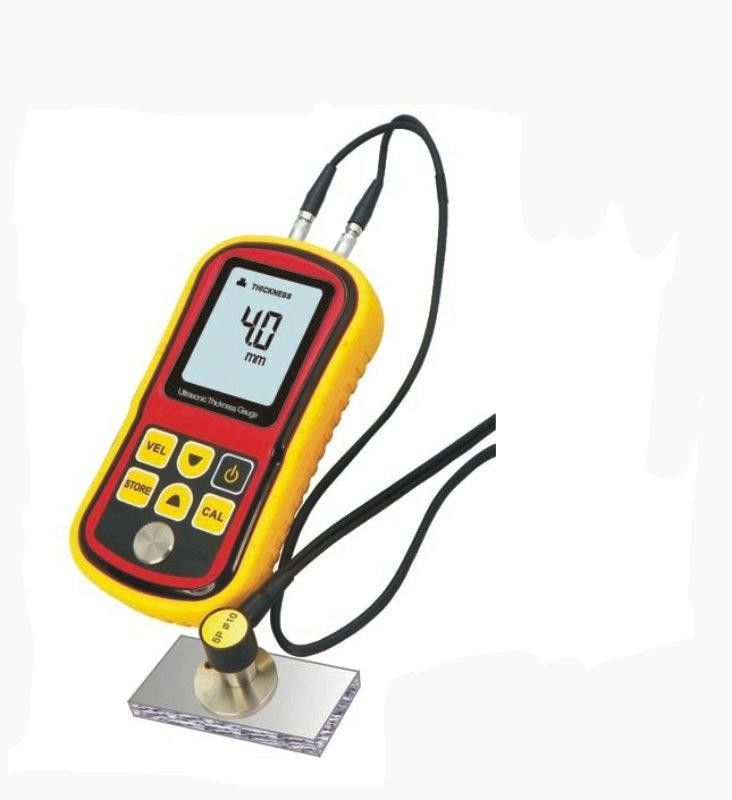

GM100 1.2~220mm Ultrasonic Thickness Gauge Steel PVC Thickness Gauge

China GM100 1.2~220mm Ultrasonic Thickness Gauge Steel PVC Thickness Gauge supplier
GM100 1.2~220mm Ultrasonic Thickness Gauge Steel PVC Thickness Gauge supplier GM100 1.2~220mm Ultrasonic Thickness Gauge Steel PVC Thickness Gauge supplier GM100 1.2~220mm Ultrasonic Thickness Gauge Steel PVC Thickness Gauge supplier GM100 1.2~220mm Ultrasonic Thickness Gauge Steel PVC Thickness Gauge supplier

Large Image :  GM100 1.2~220mm Ultrasonic Thickness Gauge Steel PVC Thickness Gauge

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-GM100

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 55.4USD
Packaging Details: in color box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T, MoneyGram
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Measuring Range: 1.2~220mm (Steel) Accuracy: ±(1%H+0.1) Mm
Resolution: 0.1mm Sound Velocity Range: 1000~9999m/s
Working Frequency: 5MHz

Features :



*Auto calibration to assure the accuracy

*Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer.

*Data store/ Data recall/ Data delete function

*Sound velocity measurement

*Low battery indication

*Auto power off

*LCD backlight display





Specification :



*Measuring range: 1.2~220mm (Steel)

*Accuracy: ±(1%H+0.1) mm

*Resolution: 0.1mm

*Sound velocity range: 1000~9999m/s

*Working frequency: 5MHz

*Minimum limit for tube measuring: Φ20*3mm (Steel)

*Power supply: 3pcs*1.5V AAA alkaline batteries

*Weight: 210g

*Dimension: 70*145*28mm

*Warranty: 12months

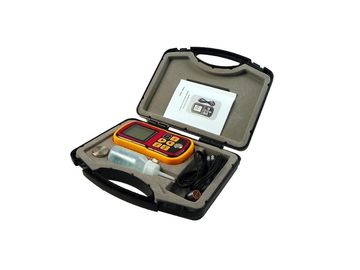

*Package: Gift box + PP box





user manual of GM100 ultrsonic thickness guage .pdf
