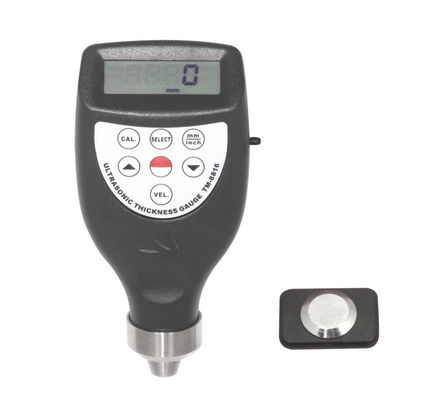

TM-8816 1.0~200mm Portable Ultrasonic Thickness Meter Audigage Pachymeter Steel Corrosion Tester Gauge

China TM-8816 1.0~200mm Portable Ultrasonic Thickness Meter Audigage Pachymeter Steel Corrosion Tester Gauge supplier
TM-8816 1.0~200mm Portable Ultrasonic Thickness Meter Audigage Pachymeter Steel Corrosion Tester Gauge supplier TM-8816 1.0~200mm Portable Ultrasonic Thickness Meter Audigage Pachymeter Steel Corrosion Tester Gauge supplier TM-8816 1.0~200mm Portable Ultrasonic Thickness Meter Audigage Pachymeter Steel Corrosion Tester Gauge supplier

Large Image :  TM-8816 1.0~200mm Portable Ultrasonic Thickness Meter Audigage Pachymeter Steel Corrosion Tester Gauge

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-TM8816

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: PP box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T, MoneyGram
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Measuring Range: 1.0~200 Mm / 0.04~8 Inch Accuracy: ± (0.5%n + 0.1)
Resolution: 0.1mm Sound Velocity Range: 500~9999m/s

Features:




* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.


Specification :



Display 4 Digit, 10 mm LCD
Operating Principle Ultrasonic
Measuring Range (metric / Imperial) 1.0~200 mm / 0.04~8 inch
Battery Indication Low Battery Indication
Sound Velocity 500~9990 m/s
Lower Limit Steel Pipes Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer
Calibration Block Included
Resolution 0.1 mm (TM-8816C 0.01 mm)
Accuracy ± (0.5%n + 0.1)
Operating Conditions Temperature: 0~40 °C, Humidity: < 85 %RH
Power Supply 4 x 1.5 V AAA (UM-4) Battery
Dimensions 135 x 65 x 27 mm
Weight 120 g (Not Including Batteries)




Standard Accessories:

1. Main Unit

2. Calibration Block

3. Coupling Agent

4. Carrying Case

5. Operating Manual



Optional Accessories:



1. USB, RS-232C data cable with software

2. Bluetooth data output with software



Applications: Used for measuring thickness and corrosion of pressure vessels,chemical equipment, boilers,oil storage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing.
