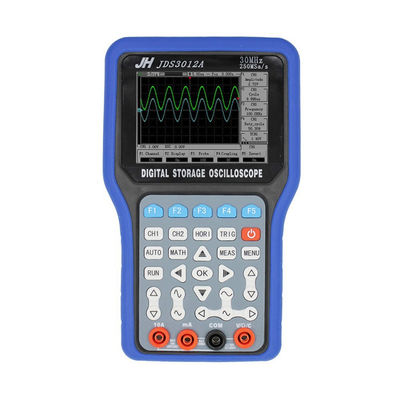

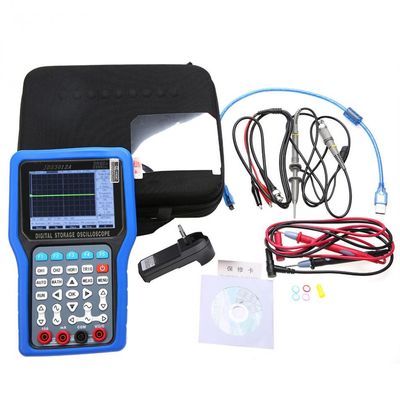

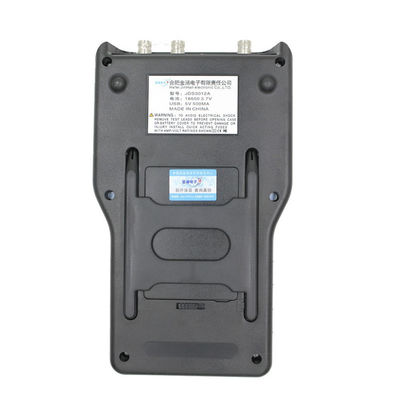

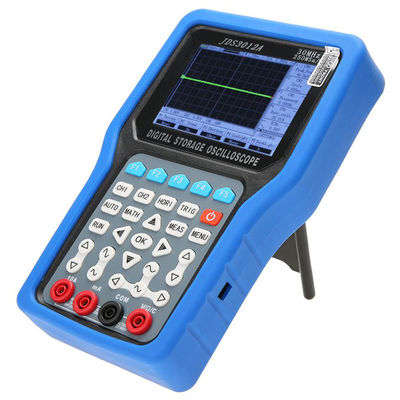

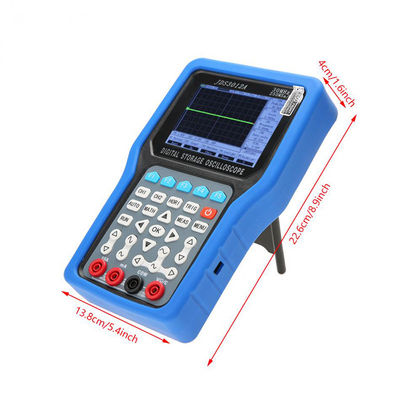

JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes Signal Generator Data Recorder

China JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier
JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes  Signal Generator Data Recorder supplier

Large Image :  JDS3012A 4.3 Inch 1 Channel 250MS/s Sample Rate Digital USB Oscilloscopes Signal Generator Data Recorder

Product Details:

Place of Origin: China
Brand Name: Jihan
Certification: CE ,Rohs
Model Number: GS- JDS3012A

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 187.2USD
Packaging Details: Color Box
Delivery Time: 3-5 days after confirm your payment for sample order or according to your order quantity
Payment Terms: Paypal , Western Union or T/T
Supply Ability: 10000 pcs/month
Contact Now
Detailed Product Description
Max Sampling Rate: 250MSa/S Bandwidth: 30MHz
Vertical Resolution: 8bit Vertical Accuracy: ±3%
Impedance: 1MΩ 25pF Coupling: DC\AC

Features :



1.This instrument combines oscilloscope, signal generator, multimeter in one, powerful and practical.

2. Adopting advanced ARM processor and dual chips, it has high-performance sampling channel that can achieve sampling rate of 250MSa/s and imum bandwidth of 30MHz.

3. You can observe signal data by serial port center.

4. Color TFT screen displays clear and stable waveform.

5. Support for firmware program upgrade via USB.

6. With edge trigger function, it can automatically detect (support 50Hz-60MHz).

7. Multiple waveform math addition functions.

8. Support automatic shutdown function and power saving mode: time can be set.

9. Waveforms can be saved as screenshots and imported to the computer via USB.





Specification :



Max Sampling Rate : 250MSa/S

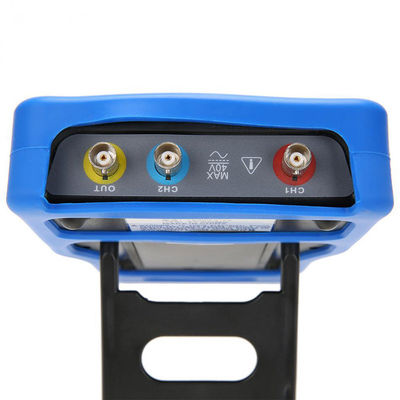

Channel : 1 analog channel + 1 digital channel + signal generator + multimeter + recorder

Bandwidth : 30MHz

Vertical Resolution : 8bit

Input range : 10mV - 5V; x1 100mV - 50V; x10 1V - 500V; x100 (1,2,5STEP)

Vertical Accuracy: ± 3%

Impedance : 1MΩ 25pF

Coupling : DCAC

Display mode : YT

Input Voltage :40V(x1);400V(x10);4000V(x100)

Time Range : 10ns-50ms(1,2,5 step) 100ms-5s(Scan)

Storage depth : 16k

Trigger mode: Auto, Normal, Single

Trigger Type: Rise, Down

Automatic detection :50Hz-60MHz Measurements: peak-to-peak, duty cycle, frequency, period

Cursor: time, voltage

Screen: 4.3 inch 16 bit true color TFT 400 * 272





Multimeter indicator:



Full scale reading: 6000 count

DCV: 600.0mV/6.000V/60.00V/600.0V/1000V

ACV: 600.0mV/6.000V/60.00V/600.0V/750V

DCA: 60.00mA/600.0mA /6.000A/10.00A

ACA: 60.00mA/600.0mA /6.000A/10.00A

Resistance: 600.0Ω /6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ

Capacitance:  40.00nF/400.0nF/4.000uF/40.00uF/400.00uF/4000uF

Diode Testing: 0V~2.0V

On-off detection: 600.0Ω gear detection, less than 30Ω when the sound





Signal Generator :



Frequency:0Hz - 10MHz

Duty cycle :0% - 100&

Amplitude :100mV - 4V

Offset :+- 0V - 2V



Serial Port Center :



Baud rate :115200 - 1200

Data bits :8,9

Check Digit:NO ,ODD, EVEN

Stop bit :1,0.5,2,1.5

Into the system : 10, 16



Recorder :



Time Base : 100ms - 5s



Standard carton :



Packing details: Gift Box

Packing quantity: 10PCS/CTN

Carton size:  60*40*50CM
