Measuring Range: | 4×90° | Material: | ABS + Aluminum |
---|---|---|---|
Type: | Angle Finder | Resolution: | ±0.01° |

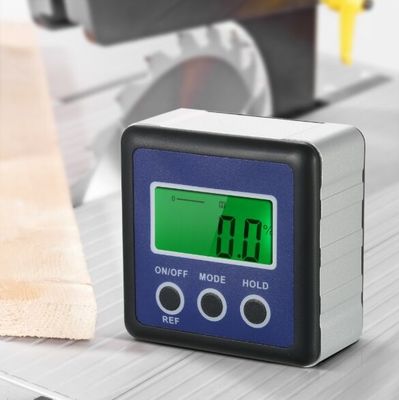

Use this mini digital level, you can measure the angle between two faces, not only in earth gravity direction. It will display the angle between the measured surface and the level. Great little tool for carpentry / construction, checking wheelchair ramps, plumber, machine industry and for anyone inspecting those kind of projects.
Features:

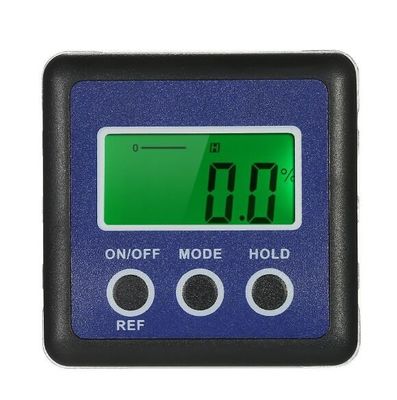

3 in 1 Measuring Tool - Digital protractor, angle finder and level in one tool, large & clear LCD with backlight for reading easily and clearly. With wide measuring range of 4×90° and 0.1° resolution.

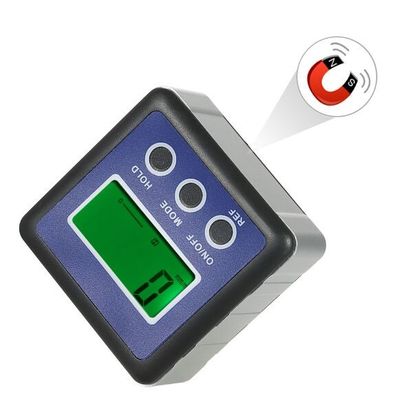

Convenient Magnetic Surface - Built-in magnetic base for firmly and securely attaching to any metal surface.
Handy Tool & Easy to Use - Compact and portable size is very convenient for using with other measuring tools.
5 Useful Function - Data hold function, zero setting to current angle, low battery indication, automatic shutdown after 3 minutes without any operation and self calibration.
Widely Usage - Suitable for angle calibration of platform & channel angle and runoff slope, grader and tractor working alignment.
Specifications:
Material: ABS + Aluminum
Color: Blue ,Red
Display Type: LCD Display
Type: Angle Finder
Measuring Range: 4×90°
Resolution of Digital Display: ±0.01°
Precision of Digital Display:
±0.1° at 0° and 90°
±0.2° at 2° ~ 89°
Unit of Measurement: (°), (%), (mm/m), (IN/FT)
Working Temperature: 32°-104° (0°-40°)
Storage Temperature: -10~50° (14~122°)
Battery: 2 * 1.5V AAA Battery (Not Included)
Storage Temperature: -10~60°
Application: Carpentry / Construction, Checking Wheelchair Ramps, Plumber, Machine Industry and for Anyone Inspecting Those Kind of Projects
Product Size: Approx. 58 * 58 * 32mm / 2.17 * 2.17 * 0.63in
Product Weight: Approx. 68g / 2.39oz
Package Size: Approx. 16 * 11.1 * 6cm / 2.56 * 2.48 * 1.30in
Package Weight: Approx. 109g / 3.85oz
Packing List:
1 * Digital Level
1 * Carrying Pouch
1 * User Manual
