VM-206 Whiteness Meter With 254 Groups Data Memory

China VM-206 Whiteness Meter With 254 Groups Data Memory supplier

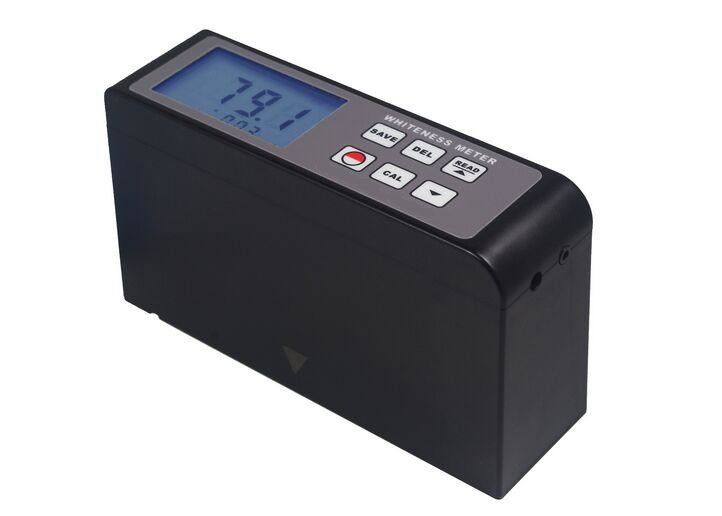

Large Image :  VM-206 Whiteness Meter With 254 Groups Data Memory

Product Details:

Place of Origin: China
Certification: CE, Rohs
Model Number: GS-VM206

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: in PP box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal , , Western Union, T/T, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Measuring Range: 0~120 Resolution: 0.1
Illumination Condition: 45/0 Illuminant: LED 457 Nm

Features :



* It consists of Light Source, Optical System, Detection System, Data Process and Display System. The whiteness Calculation Formula of the instrument is blue light whiteness R457.
* Use of high quality imported components, good reliability.
* The optical path design is reasonable, simple. Adopt filter system with correction, the whiteness can be reflected quantitatively.
* No preheating after starting, measurements can be taken after simple calibration, easy to operate.
* Pass strict inspection and testing, the instrument conforms to the JJG 512-2002 Whiteness Meter Verification Regulation. Also conforms to GB3978, GB3979, GB7973, GB7974, ISO2470, GB8904.2, QB1840, GB2913, GB13025.2, GB1543, ISO2471, GB10339, GB5950, GB12911, GB2409 and other standards.
* Able to memory 254 groups of measurement data.
* Use USB data out put and RS- 232 data out put to connect with PC.
* Provide Bluetooth data out put choice.



Specification :




Measuring range 0~120
Resolution 0.1
Illumination condition 45/0
Illuminant LED 457 nm
Whiteness Formula Blue Light Whiteness WB=R457
Measuring Aperture 18x11 mm Rectangle
Zero Drift ≤0.1
Stability of Display ≤0.5
Repeatability of Measurement ≤0.1
Operating Condition Temperature 0~40℃
Humidity <85 %RH
Power Supply Lithium Battery
Size 140x45x75 mm
Weight 305 g (Including Batteries)




Standard Accessories :



1. Main Unit

2. AC Adaptor

3. Standard White Board

4. Optical Cleaning Cotton Cloth

5. Carrying Case

6. Operation Manual



Optional Accessories:



1. Constant Pressure Powder Forming Apparatus

2. USB, RS-232C data cable with software

3. Bluetooth data out put with software
