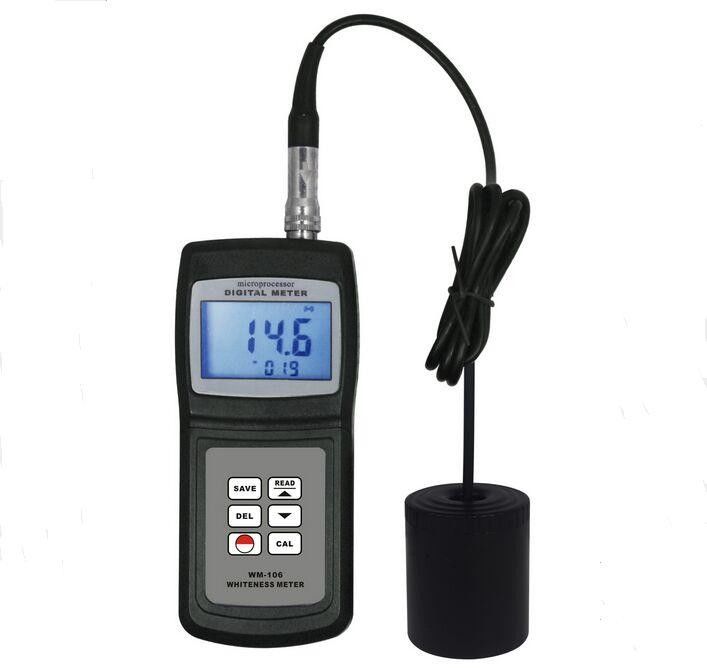

WM-106 Whiteness Meter With 254 Groups Data Memory

China WM-106 Whiteness Meter With 254 Groups Data Memory supplier

Large Image :  WM-106 Whiteness Meter With 254 Groups Data Memory

Product Details:

Place of Origin: China
Certification: CE, Rohs
Model Number: GS-WM106

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Packaging Details: in PP box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal , , Western Union, T/T, MoneyGram
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Measuring Range: 0~120 Resolution: 0.1
Illumination Condition: 45/0 Illuminant: LED 457 Nm

Features :
* It consists of Light Source, Optical System, Detection System, Data Process and Display System. The whiteness Calculation Formula of the instrument is blue light whiteness R457.
* Use of high quality imported components, good reliability.
* The optical path design is reasonable, simple. Adopt filter system with correction, the whiteness can be reflected quantitatively.
* No preheating after starting, measurements can be taken after simple calibration, easy to operate.
* Pass strict inspection and testing, the instrument conforms to the JJG 512-2002 Whiteness Meter Verification Regulation. Also conforms to GB3978, GB3979, GB7973, GB7974, ISO2470, GB8904.2, QB1840, GB2913, GB13025.2, GB1543, ISO2471, GB10339, GB5950, GB12911, GB2409 and other standards.
* Able to memory 254 groups of measurement data.
* Use USB data out put and RS- 232 data out put to connect with PC.
* Provide Bluetooth data out put choice.

Specification :

Illumination condition45/0
IlluminantLED 457 nm
Whiteness FormulaBlue Light Whiteness WB=R457
Measuring Aperture≤15mm
Zero Drift≤0.1
Stability of Display≤0.5
Repeatability of Measurement≤0.1
Operating ConditionTemperature0~40℃
Humidity<85 %RH
Power Supply4x1.5V AAA size (UM-4) Battery (Optional AC Power Supply)
SizeMain Unit156x67x28 mm
SensorФ44x55 mm
Weight200 g (Not Including Batteries)

Standard Accessories :
1. Main Unit
2. Sensor
3. Standard White Board
4. Optical Cleaning Cotton Cloth
5. Carrying Case
6. Operation Manual
Optional Accessories:
1. AC Adaptor
2. Constant Pressure Powder Forming Apparatus
3. USB, RS-232C data cable with software
4. Bluetooth data out put with software
Application :
Whiteness Meter is mainly used to directly measure the whiteness value of object or powder with flat surface.
Can be widely used in whiteness measurement of textile printing and dyeing, paint, chemical building materials, paper board, plastic products, white cement, ceramics, enamel, talc powder, starch, flour, salt, detergent, cosmetics and other substances.
