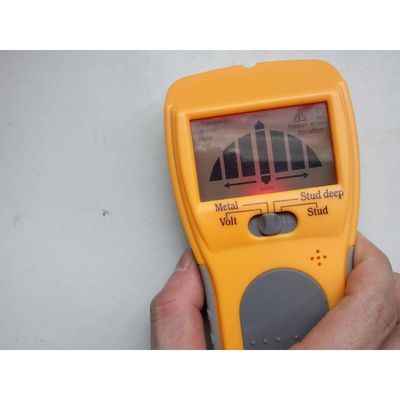

TH200 3-in-1 Stud Center finder, Metal and AC live wire detector

Large Image : TH200 3-in-1 Stud Center finder, Metal and AC live wire detector

Product Details:

Place of Origin:	China
Certification:	CE ,Rohs
Model Number:	GS-TH200

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	21.4USD
Packaging Details:	Blister+Card
Delivery Time:	3-5 days for sample order or according to your order quantity
Payment Terms:	Paypal ,West Union,T/T
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

TH200 uses electronic signals to locate the exact position of studs, ceiling joist AC wires and metal through drywall, concrete and other common wall materials. Once the edge of a stud has been detected, It emits audio and visual signals (LCD Display) that allow you to easily pinpoint its center position.

Features :

Metal scan mode locates metal pipes or rebar

Automatic calibration on power

Easily find the edges and center

manual adjustment of sensitivity, 4 LED light indicates sensitivity

Audible indication (beep) when target is detected

Easy to operate and carry

Specification:

Object of Detection: Wood joists, AC Live Wires & Metals

Detection Capability:

Wood joists: thickness of wall is 19.05mm (3/4 inches)

AC Live Wires: 50.80mm (2 inches) deep away from the wall

Metals: 38.10mm (1 1/2 inches) deep away from the wall

Power Supply: 1 x 9V battery

Battery Life: 1 year with normal use

Water Resistance : Water resistant, but not waterproof.

Operating Temperature : +20℉ to + 120℉(-7℃ to +49℃)

Storage Temperature : -20℉ to + 150℉(-29℃ to +66℃)

Dimensions: 223×92×45mm

Weight: About 250g (include battery)

Applications:

Wires and pipelines distribution on upholstery, installation of electrical equipments (air conditioner and oil smoke extractor)

Frame of wood furniture detection

Hang mirror, picture, cabinet, and shelves securely

Install grab bar, ceiling fan, and chandelier

Find metallic pipes in concrete

Find electrical box, exhaust vent, conduit, rebar, and ducting

Trace hot wires behind ceiling, floor and wall

In construction and interior decoration

Detection of structures for installation of wooden furniture

Installation of doors and windows
