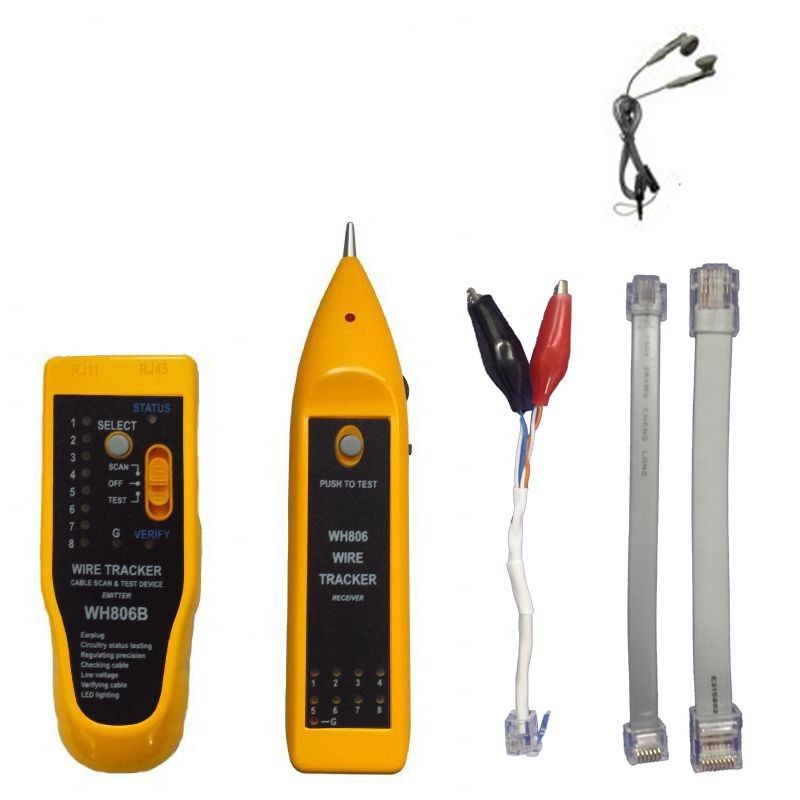

WH806B Wire Tracker Network Cable Tester

China WH806B Wire Tracker Network Cable Tester supplier
WH806B Wire Tracker Network Cable Tester supplier WH806B Wire Tracker Network Cable Tester supplier

Large Image :  WH806B Wire Tracker Network Cable Tester

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-WH806B

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: 12.4USD
Packaging Details: in color box
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T
Supply Ability: 1000 pcs/month
Detailed Product Description

Features :


Cable state testing:
  1. Line DC detecting and anode, cathode determinant.
  2. Open, short and cross testing.
  3. Bell signal detecting.
Volume regulates: according to regulate the sound magnitude.
Function of speed regulating: choice speed on testing.
Function of the earphone: in noisy environment, earphone can be used to prevent interference from the outside.
Volume adjusting: while find a wire, volume knob can be rotated for moderate level of sound.
Spotlight: can easily work as usual while putting on the light switch at night and in the dark.


Specification:

Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables
Check wiring error in 5E, 6E, telephone line, coaxial cable, USB cable and such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
Locate the wiring or connection error
Measure cable length and determine the distance of open circuit and short circuit
Dynamically calibrate cable length and make length measurement as accurate as 97%
Portable unit with long battery life (wait-case 50 hours)
Automatically time-delay shut off and backlight display function
Measure length and pair with or without far-end recognizer
Locate cable and there are 8 far-end passive test jacks (ID No.ID1-ID 8)
Far-end recognizer with prompting voice
Self-checking function and automatically compensate any change in battery capacity or ambient temperature
Single board computer software watchdog design and reliable operation
Product size :
15×3.7×2 cm (receiver)
12.2×4.5×2.3 cm ( emitter)
Weight:      465g
