GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder

China GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder supplier
GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder supplier GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder supplier GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder supplier GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder supplier GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder supplier

Large Image :  GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder

Product Details:

Place of Origin: China
Certification: CE ,Rohs
Model Number: GS-GM60

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: 12.4USD
Packaging Details: Blister+Card
Delivery Time: 3-5 days for sample order or according to your order quantity
Payment Terms: Paypal ,West Union,T/T, MoneyGram
Supply Ability: 1000 pcs/month
Contact Now
Detailed Product Description
Display: LED Signal Transmission Distance: ≥1km
Environmental Operating Temperature: -10 ~ 40℃ (14 ~ 104°F) Relative Humidity: 10-95% RH

Functions:



1. Long distance wiring tracing;

2. Internet cable order verifying;

3. Wiring voltage existence inspection;

4. Wiring voltage positive or negative characteristic measuring;

5. Wiring shorts inspection;

6. Low Battery indication;

7. tracing sensitiveness and volume adjusting;

8. headphone jack output;

9. flashlight;





Specifications:



Hunt signal transmission distance:> 1Km

Display: LED

Low battery prompts: √

Volume adjustment function: √

Environmental Operating Temperature: -10 ~ 40℃ (14 ~ 104°F)

Relative humidity: 10-95% RH

Storage temperature: -20 ~ 60 (-4 ~ 140°F)

Size

Transmitter: 64 * 31 * 118.9mm

Receiver: 48.6 * 26 * 117mm

TEU Quantity: 60PCS

Standard box size: 52.9 * 34.9 * 28.5cm

Weight

Transmitter: 119.2g

Receiver: 68.8g

Power supply

Transmitter: 3 *1.5V batteries

Receiver: 6F22 9V battery

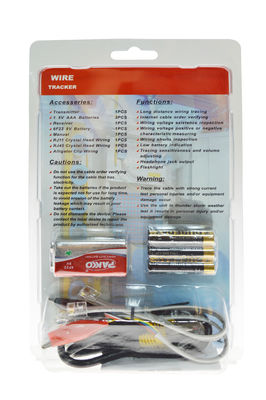

Packing List:


1x Transmitter
3x 1.5V AAA battery
1x Receiver
1x 6F22 9V battery
1x English manual
1x RJ11 Crystal head wiring
1x RJ45 Crystal head wiring
1x Alligator clip wiring



Caution :


Do not use the cable order verifying function for the cable that have electricity.

Take out the batteries if the products are not expected to be used for a long time to avoid the erosion of battery leakage which may result in poor battey contact.

Do not dismantle the device , if there are any quality problem ,please contact us to solve the problem.



Warning :



Tracing the cable with strong current may result in personal injuries and/or equipment damage.

Use the unit in thunder storm weather may result in personal injuries and/or equipment damage.



GM60 Handheld Multi-Purpose RJ11 RJ45 Wire Tracker Network Cable Tester CCTV Tester Phone Line Network Finder
