WH462 5 in 1 Wire Tracker Network Cable Tester

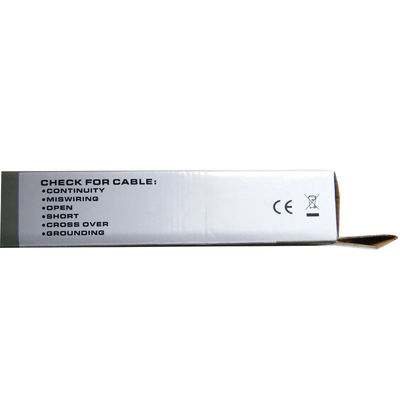

Large Image : WH462 5 in 1 Wire Tracker Network Cable Tester

Product Details:

Place of Origin:	China
Certification:	CE ,Rohs
Model Number:	GS-WH462

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Packaging Details:	in color box
Delivery Time:	3-5 days for sample order or according to your order quantity
Payment Terms:	Paypal ,West Union,T/T
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

This 5 in 1 Cable Tester tests 5 typical Phone, LAN and Computer cables. It tests installed cables or patch cords with RJ-45, RJ-11, 1394, USB and BNC connectors. It is intended to test cables with straight through connections not cables with reversed or transposed connections like some LAN crossover cable or reverse wired telephone cables.

This network cable tester is an ideal tool for testing the Continuity, Miswiring, Open, Short, Cross Over, Grounding of Cable

Features :

Test 5 types of cables (RJ-45, RJ-11, 1394, USB and BNC)

Simple one button test

Ergonomic portable handheld design

Test installed wiring or patch cables

Remote unit stores in Main unit

600 feet test distance (RJ-45 / RJ-11 / BNC)

Convenient battery access

Low Battery Indicator

LEDs indicate connections and faults of wire and pins

Beeper provide audible annunciation of test results

Tests shielded (STP) or unshielded (UTP) LAN cables

Test shields in 1394 and USB cables

Specification:

Cable Tested:

1, UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568)

2, RJ-11 cables with male connectors, 2 to 6 conductors installed

3, 1394 Cables with Type 1 plugs on both ends

USB cables with Type A flat plug on one end and type B square Plug on other end

BNC cables with male connectors

Faults Indicated: No Connections, Shorts, Opens and Crosses

Low Battery Indicator: LED lights to indicate low battery

Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)

Item Dimensions: appox. 185 (L) x 100 (W) x 25 mm (7.28' x 3.94' x 0.98' inch)

Item Weight: 195 g (6.88 oz) (Battery excluded)

Accessories:

1. 5-in-1 Network Cable Tester

2. 1 x Far End Remote Jack (USB RJ45 RJ11 1394) (Attached to the main unit)

3. 1 x BNC Remote Jack

4. 1 x protective pouch

5. 1 x Instruction Manual
